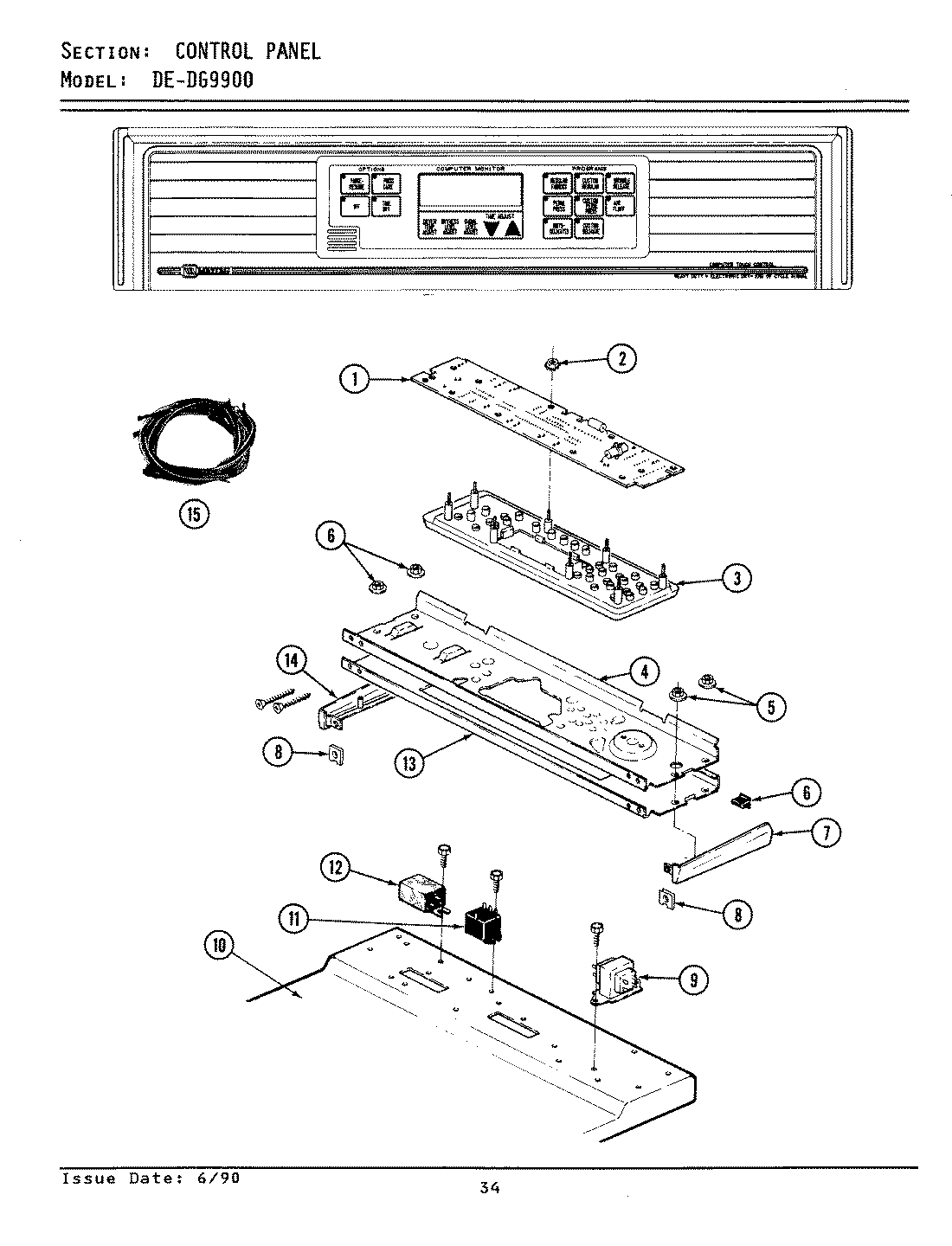

DE9900 01 – CONTROL PANEL

Products

Position	Product
1	MAY 307218
2	M0282005 Whirlpool Nut
3	MAY 307214
4	BACKUP PLATE
5	MAY 214872
6	MAY 214897
7	MAY 210932
7	MAY 207216
8	MAY 214894
9	MAY Y313559
9	MAY 207766
10	TOP COVER ASSY. (WHT)
11	MAY 206824
12	MAY 306199
12	WP90767 Whirlpool Screw
13	CONTROL PANEL
14	MAY 207215
15	MAY 307201
15	MAY 307210
