DEA500A0D 04 – DRUM

DEA500A0D 04 – DRUM

Written by

in

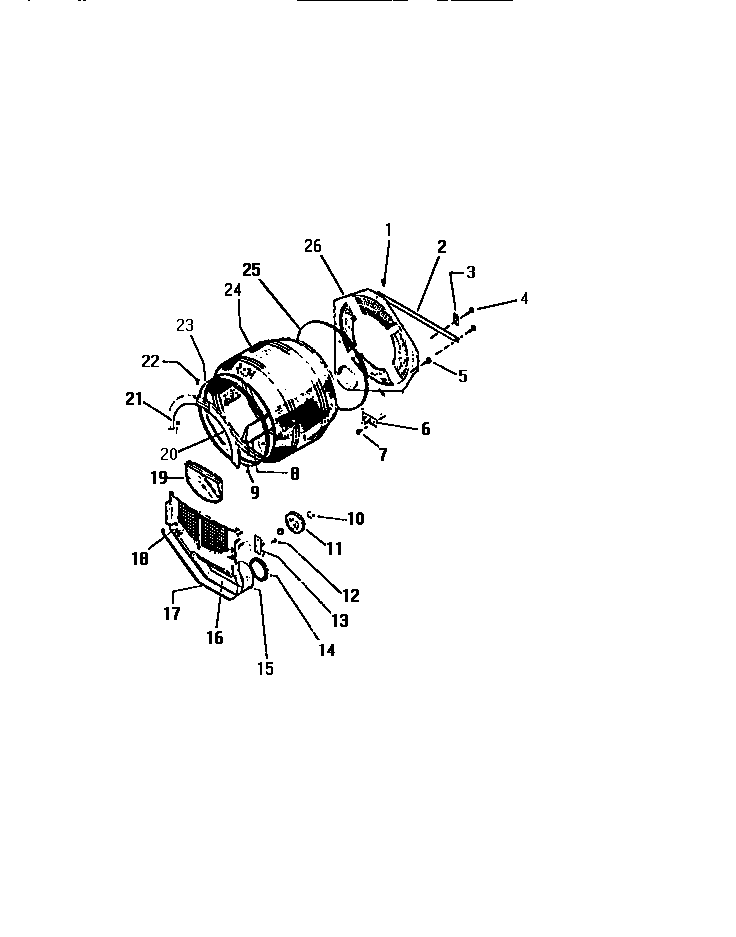

DEA500A0D 04 – DRUM

Products

PositionProduct
*90346WHEEL, TIRE, NYLINER PACKAGE (CONSIST OF WHEEL, TIRE, NY
*90345WCI F133047-000
2PLENUM SUPT ASSEMBLY
3WCI F131174-000
55303015671 Frigidaire Bracket Termination Screw
6SHAFT AND MTG PLATE (3)
7WCI F132080-000
8WCI F076968-000
9SCREW (6)
10WCI F063124-000
11WHEEL, TIRE, NYLINER ASSEMBLY (NOTE 1) (5)
12SEMS SCREW, WATER VALVE MOUNTING (2)
13SHAFT AND MTG PLATE (2)
14WCI F133008-000
15EXHAUST AND LINT HSG ASSEMBLY (NOTE 2)
16WCI F137050-000
17WCI F078861-100
18WCI F76979
19WCI F134722-000
20WCI F078825-000
21GROMMET (2)
22131243800 Frigidaire Screw
23WCI F133007-100
24WCI F076951-300
25WCI F133007-000
26PLENUM AND SEAL ASSEMBLY WITHOUT LIGHT
