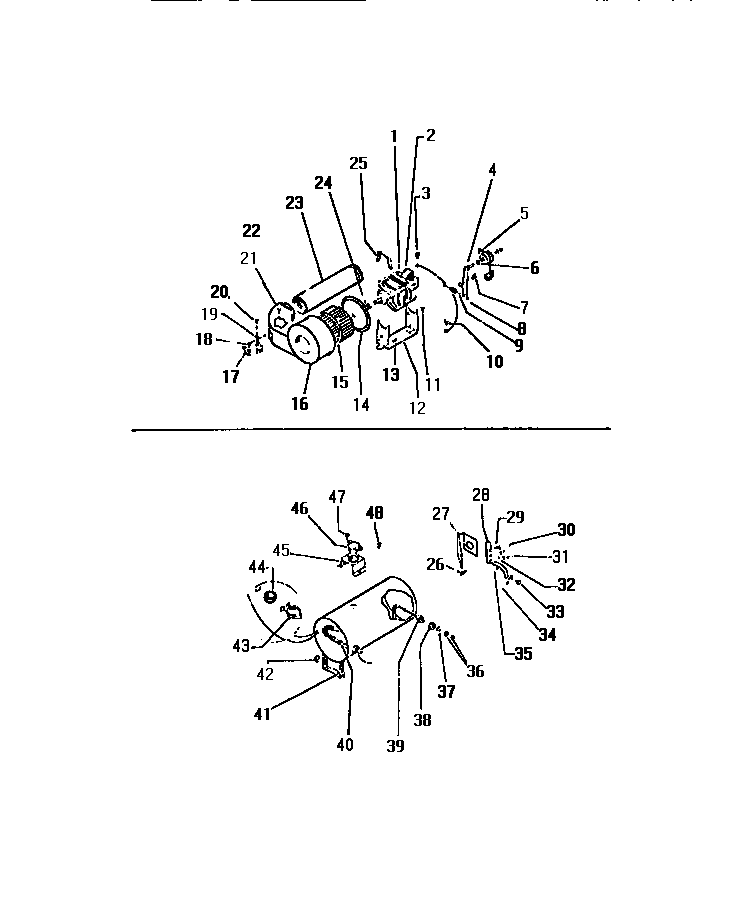

DEA500A0D 05 – BLOWER & HEATER HOUSING COMPONENTS

Products

Position	Product
*90328	GROUND WIRE, ELECTRIC
*90333	WCI F133285-000
*90330	WCI NOTE 1
*90329	GROUND WIRE, GAS
*90338	WCI F083602-000
*90331	WCI NOTE 2
1	MOTOR AND PULLEY ASSEMBLY, GE
2	MOTOR SWITCH (GE)
3	WCI F132144-000
4	IDLER WHEEL ASSEMBLY (IDLER BAR ASSEMBLY WHEEL AND WASHE
5	BELT
7	WCI F079485-000
8	WCI F076822-000
9	WCI F131652-000
11	SEMS SCREW
12	WCI F078190-026
14	WCI F064354-028
15	WCI F076829-000
16	WCI F078201-100
17	WCI F132073-000
17	CONTROL THERMOSTAT
19	BRACKET
23	EXHAUST PIPE ASSEMBLY
24	WCI F064360-000
25	MOTOR CLIP (2)
27	WCI F063536-026
28	5304409888 Frigidaire Oven Terminal Block with Hardware
29	SCREW (6)
31	NUT (4)
32	WCI F073329-000
33	134154100 Frigidaire Screw 10-32 x 0.375 Co
34	WCI F078101-000
35	WCI F076793-100
36	NUT (2)
37	WASHER (2)
38	INSULATOR, FEMALE (2)
39	INSULATOR, MALE (2)
40	HEAT ELEMENT PKG (PACKAGE CONTAINS ELEMENT, INSULATORS,
41	HTR. HOUSING
43	CLIP (11)
44	WCI F131735-000
45	WCI F076956-000
46	WCI F132202-000
47	5303015671 Frigidaire Bracket Termination Screw
