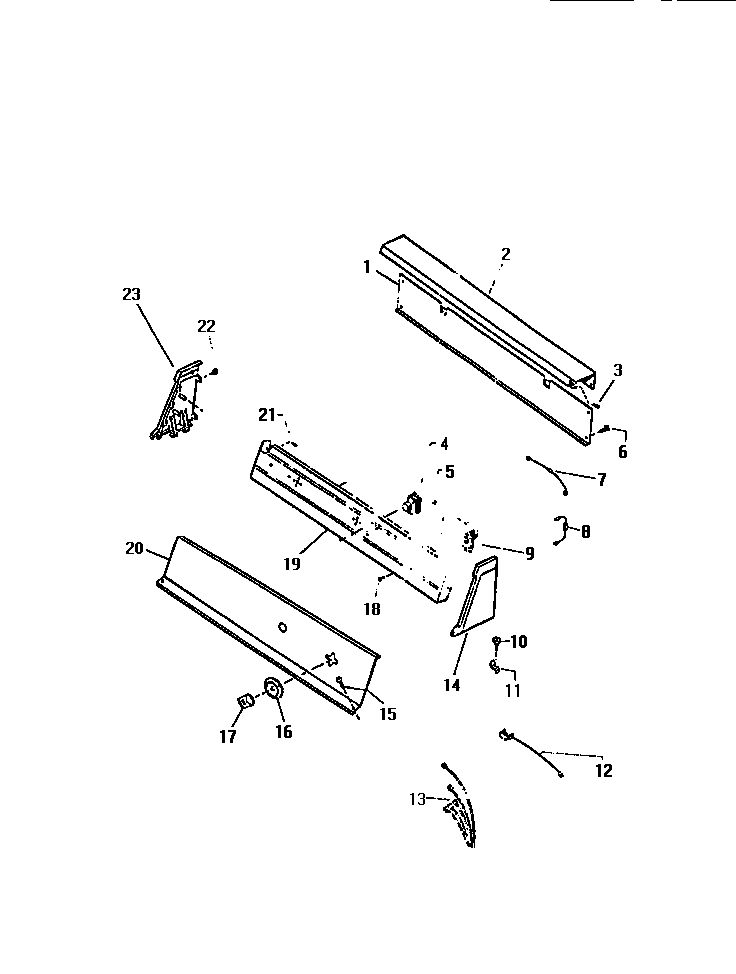

DEA500A0T 02 – CONSOLE & CONTROLS

Products

Position	Product
1	WCI F139230-026
2	WCI F139795-000
3	WCI F139635-000
4	PUSH TO START SWITCH
5	SEMS SCREW (2)
7	WCI F065111-012
7A	RESISTOR
8	RESISTOR (ELECTRIC MODELS ONLY)
9A	TIMER MOTOR
9	WCI F139771-000
10	131243800 Frigidaire Screw
11	WCI F079171-000
12	WCI F139816-000
13	(GAS MODELS) HARNESS REPAIR LOCALLY
13	CLIP HARNESS TO RH CAB (2)
13	TIE-HARN TOP PNL (NON-ILLUSTRATED)
13	5303015671 Frigidaire Bracket Termination Screw
13	WCI F140232-000
13	5304464772 Frigidaire Refrigerator Wire Tie
13	WCI F063124-000
13	WCI F136345-000
14	WCI F139719-000
15	WCI F140203-000
16	WCI F078951-000
17	WCI F078950-100
18	WCI F060796-000
19	WCI F140183-022
20	WCI F140233-100
21	131205100 Frigidaire Screw
22	WCI F139577-000
23	WCI F139719-100
