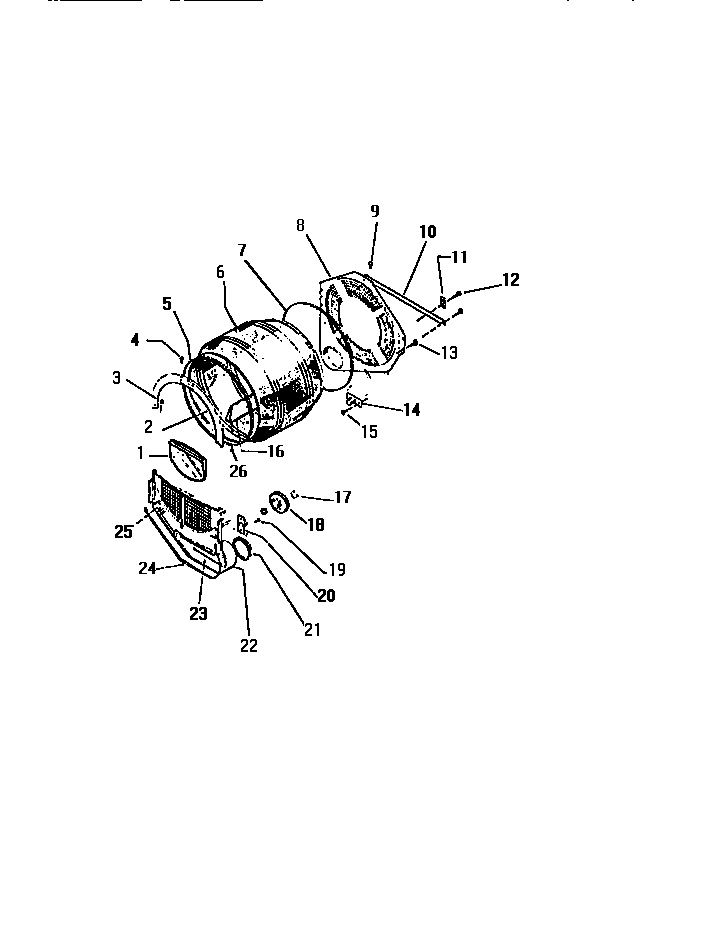

DEA500A1D 04 – DRUM

Products

Position	Product
*01025	WHEEL, TIRE, NYLINER PACKAGE (CONSIST OF WHEEL, TIRE, NY
*01022	WCI F133024-000
*01023	WCI F133047-000
*01011	WCI F133024-00
1	WCI F134722-000
2	WCI F078825-000
3	GROMMET (2)
4	131243800 Frigidaire Screw
5	WCI F133007-100
6	WCI F076951-300
7	WCI F133007-000
8	PLENUM AND SEAL ASSEMBLY WITHOUT LIGHT
10	PLENUM SUPT ASSEMBLY
11	WCI F131174-000
13	5303015671 Frigidaire Bracket Termination Screw
14	SHAFT AND MTG PLATE (3)
15	WCI F132080-000
16	WCI F076968-000
17	WCI F063124-000
18	WHEEL, TIRE, NYLINER ASSEMBLY (NOTE 1) (5)
19	SEMS SCREW, WATER VALVE MOUNTING (2)
20	SHAFT AND MTG PLATE (2)
21	WCI F133008-000
22	EXHAUST AND LINT HSG ASSEMBLY (NOTE 2)
23	WCI F137050-000
24	WCI F078861-100
25	WCI F76979
26	SCREW (6)
