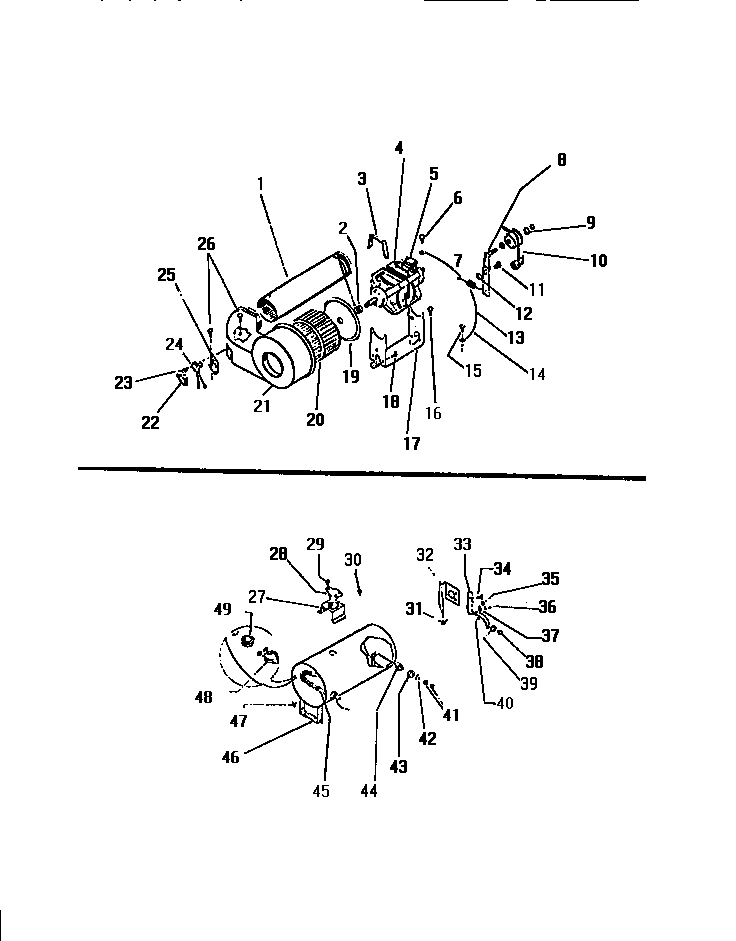

DEA500A1D 05 – BLOWER & HEATER HOUSING COMPONENTS

Products

Position	Product
*01014	WCI F133285-000
1	EXHAUST PIPE ASSEMBLY
2	WCI 064360-000
3	MOTOR CLIP (2)
4A	MOTOR AND PULLEY ASSEMBLY, GE
5	MOTOR SWITCH (GE)
5A	MOTOR SWITCH (EMERSON)
6	WCI F132144-000
7	WCI F131652-000
8	IDLER WHEEL ASSEMBLY (IDLER BAR ASSEMBLY WHEEL AND WASHE
10	BELT
11	WCI F079485-000
12	WCI F076822-000
13	WCI F132353-000
14	GROUND WIRE, ELECTRIC
16	SEMS SCREW
17	WCI F078190-026
19	WCI F064354-028
20	WCI F076829-000
21	WCI F078201-100
22	THERMO-CONT (ELECTRIC MODELS ONLY)
24	WCI F136777-000
25	BRACKET
27	WCI F076956-000
28	WCI F132202-000
29	5303015671 Frigidaire Bracket Termination Screw
32	WCI F063536-026
33	5304409888 Frigidaire Oven Terminal Block with Hardware
34	SCREW (6)
36	NUT (4)
37	WCI F073329-000
38	134154100 Frigidaire Screw 10-32 x 0.375 Co
39	WCI F078101-000
40	WCI F076793-100
41	NUT (2)
42	WASHER (2)
43	INSULATOR, FEMALE (2)
44	INSULATOR, MALE (2)
45	WCI F1370222-000
46A	COMPLETE HTR ASSEMBLY
46	HTR. HOUSING
48	CLIP (11)
49	WCI F131735-000
