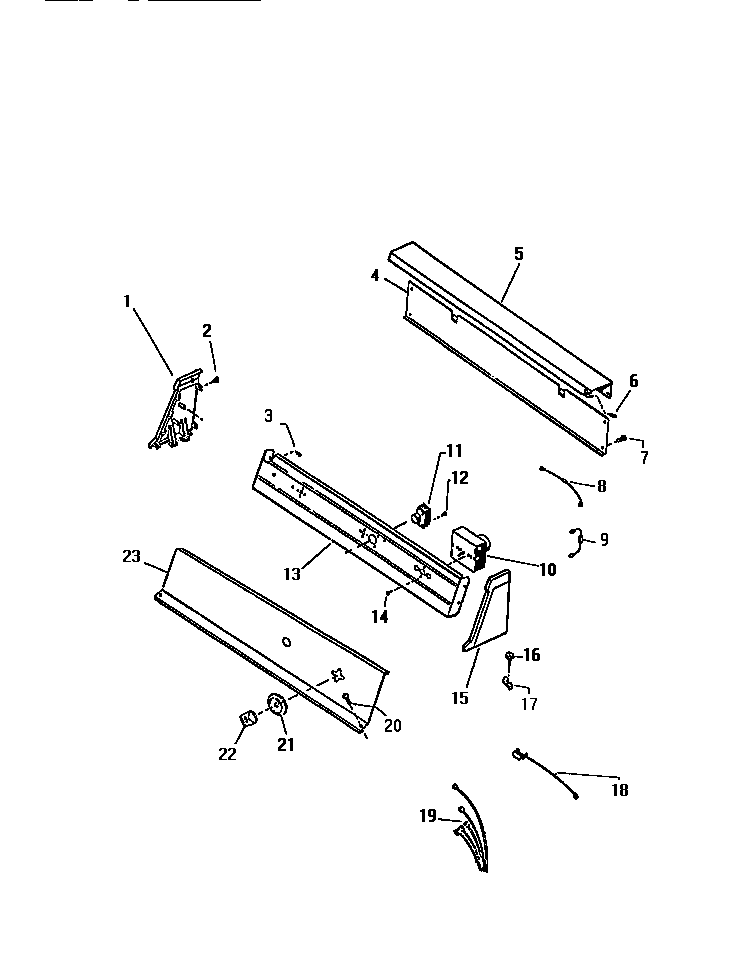

DEA500A1T 02 – CONSOLE & CONTROLS

Products

Position	Product
1	WCI F139719-100
2	WCI F139577-000
3	131205100 Frigidaire Screw
4	WCI F139230-026
5	WCI F139795-000
6	WCI F139635-000
8	RESISTOR (GAS MODELS)
9	RESISTOR (ELECTRIC MODELS ONLY)
10	WCI F139771-000
10A	TIMER MOTOR
11	PUSH TO START SWITCH
12	SEMS SCREW (2)
13	WCI F140183-022
14	WCI F060796-000
15	WCI F139719-000
16	131243800 Frigidaire Screw
17	WCI F079171-000
18	WCI F139816-000
19C	WCI F140232-000
19A	TIE-HARN TOP PNL (NON-ILLUSTRATED)
19	CLIP HARNESS TO RH CAB (2)
19G	WCI F136345-000
19E	5303015671 Frigidaire Bracket Termination Screw
19B	5304464772 Frigidaire Refrigerator Wire Tie
19H	WCI F063124-000
20	WCI F140203-000
21	WCI F078951-000
22	WCI F078950-100
23	WCI F140233-100
