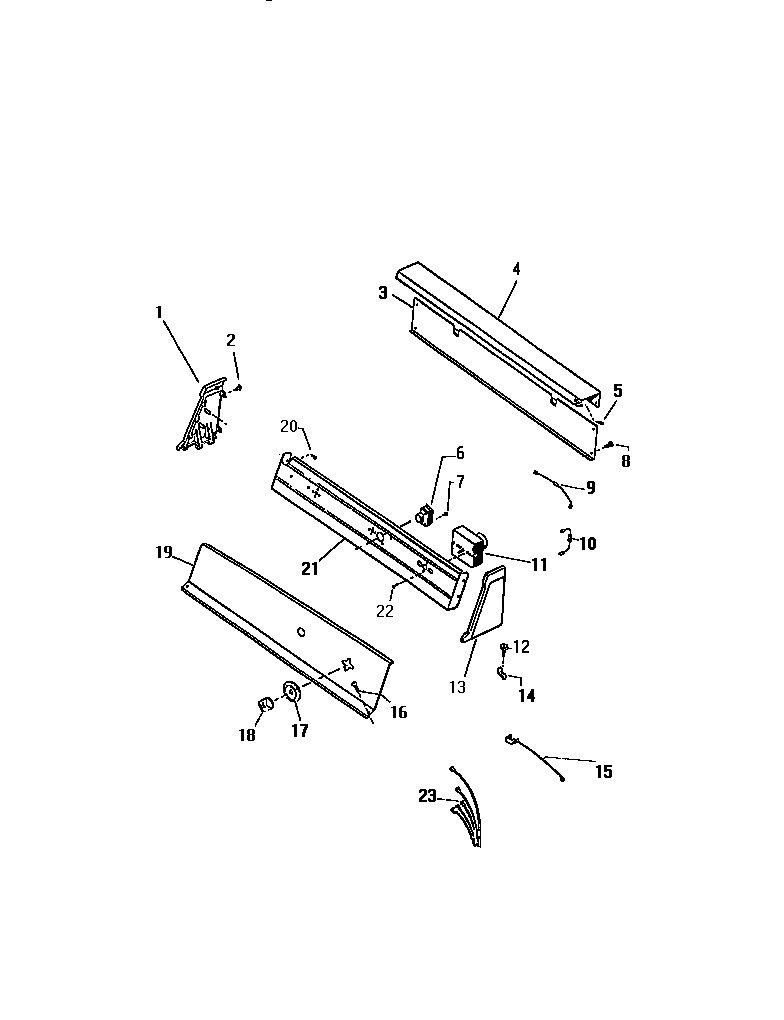

DEA500A2D 02 – CONSOLE & CONTROLS

Products

Position	Product
1	WCI F139719-100
2	WCI F139577-000
3	WCI F139230-026
4	WCI F139795-000
5	WCI F139635-000
6	PUSH TO START SWITCH
7	SEMS SCREW (2)
9A	WCI F065111-016
10	RESISTOR (ELECTRIC MODELS ONLY)
11A	TIMER MOTOR
11	WCI F139771-000
12	131243800 Frigidaire Screw
13	WCI F139719-000
14	WCI F079171-000
15	WCI F139816-000
16	WCI F140203-000
17	WCI F078951-000
18	WCI F078950-100
19	WCI F140233-100
20	131205100 Frigidaire Screw
21	WCI F140183-022
22	WCI F060796-000
23D	5303015671 Frigidaire Bracket Termination Screw
23B	5304464772 Frigidaire Refrigerator Wire Tie
23G	WCI F063124-000
23F	WCI F136345-000
23	CLIP HARNESS TO RH CAB (2)
23A	TIE-HARN TOP PNL (NON-ILLUSTRATED)
23C	WCI F140843-000
