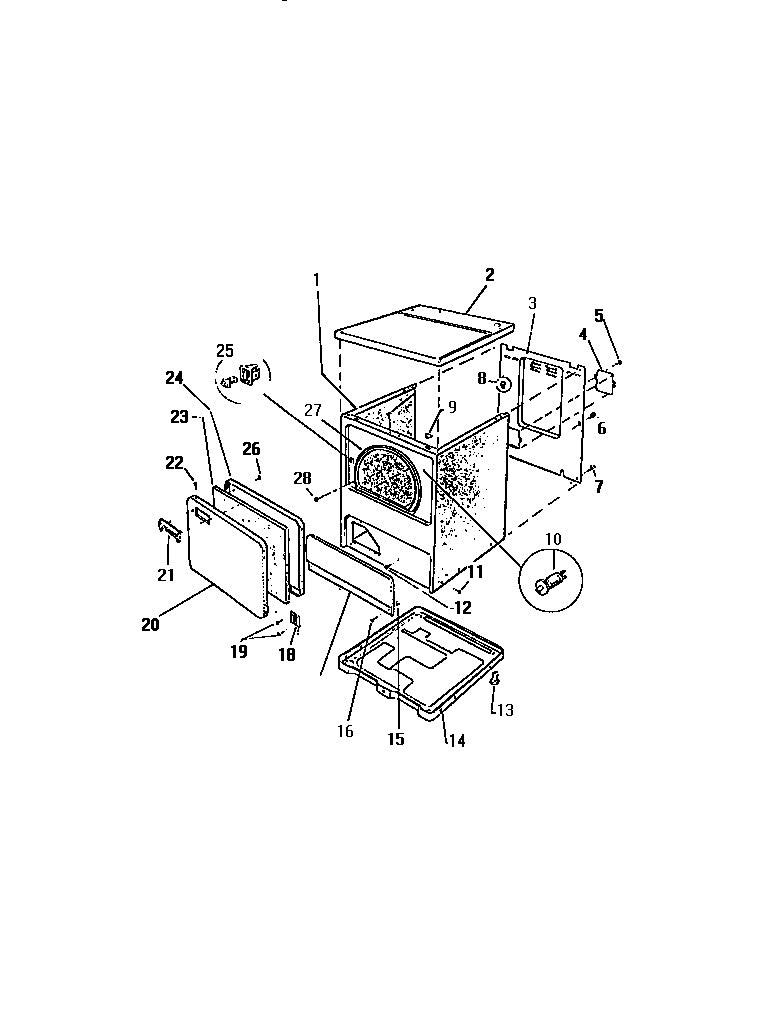

DEA500A2D 03 – CABINET

DEA500A2D 03 – CABINET

Written by

in

DEA500A2D 03 – CABINET

Products

PositionProduct
*56202WCI F140852-000
*56200WCI F139944-000
*56207TOUCH-UP SPRAY PAINT, ALMOND (6 OZ)
*56209INSTALLATION INSTRUCTIONS
*56201WCI F140857-000
1WCI F134920-339
2TOP PANEL, ALMOND
3WCI F139218-526
4ACCESS PLATE TERM. BLOCK
55303015671 Frigidaire Bracket Termination Screw
8WCI F001345-000
9WCI F130448-000
10DOOR SWITCH
11131205500 Frigidaire Screw
12SCREW (6)
13WCI F137033-000
14WCI F140281-026
15SPEED NUT, ELECTRIC MODELS (2)
17ACCESS PANEL, ALMOND
18WCI F078319-000
20OUTER DOOR PANEL, ALMOND
21WCI F078673-200
22SCREW (3)
23WCI F132413-000
24WCI F137873-028
255366021400 Frigidaire Door Latch & Metal Strike
26WCI F136470-000
27WCI F133271-000
28216858001 Frigidaire Refrigerator Screw
