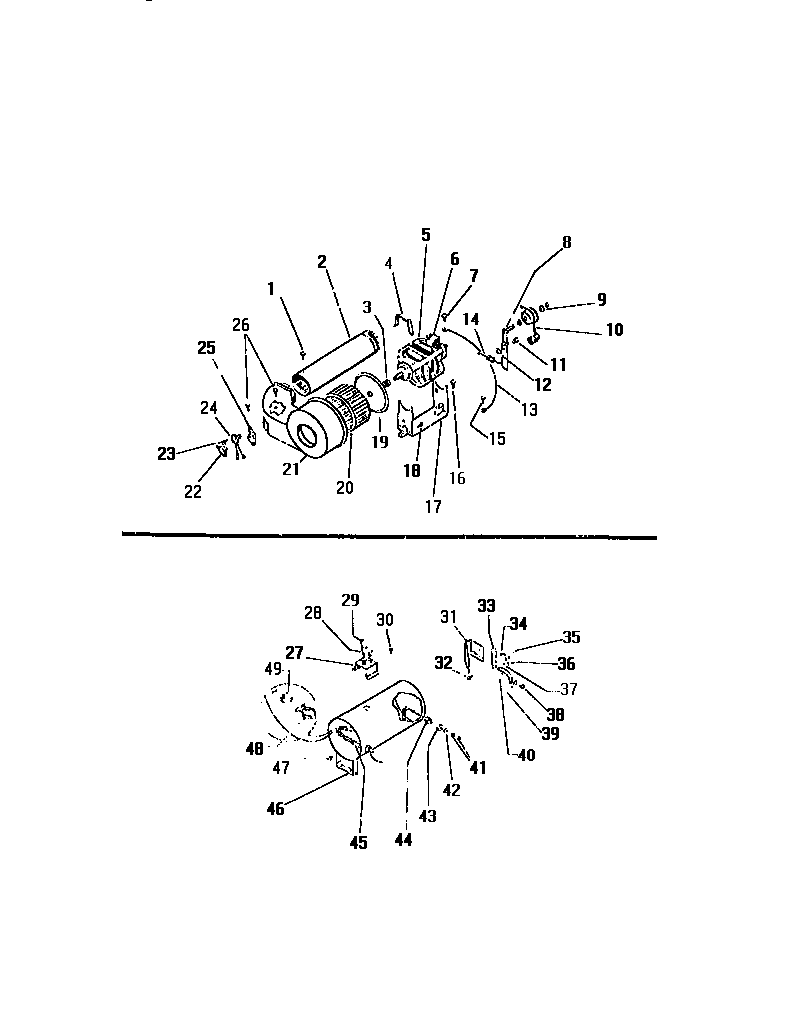

DEA500A2D 05 – BLOWER & HEATER HOUSING COMPONENTS

Products

Position	Product
*56203	COMPLETE HTR ASSEMBLY
*56205	WCI F133285-000
2	EXHAUST PIPE ASSEMBLY
3	WCI F064360-000
4	MOTOR CLIP (2)
5A	MOTOR AND PULLEY ASSEMBLY, GE
6	MOTOR SWITCH (GE)
6A	MOTOR SWITCH (EMERSON)
7	WCI F132144-000
8	IDLER WHEEL ASSEMBLY (IDLER BAR ASSEMBLY WHEEL AND WASHE
10	BELT
11	WCI F079485-000
12	WCI F076822-000
13	GROUND WIRE, ELECTRIC
14	WCI F131652-000
16	SEMS SCREW
17	WCI F078190-026
18	5303015671 Frigidaire Bracket Termination Screw
19	WCI F064354-028
20	WCI F076829-000
21	WCI F078201-100
22	THERMO-CONT (ELECTRIC MODELS ONLY)
24	WCI F136777-000
25	BRACKET
27	WCI F076956-000
28	THERMO-SAFETY
31	WCI F063536-026
33	5304409888 Frigidaire Oven Terminal Block with Hardware
34	SCREW (6)
36	NUT (4)
37	WCI F073329-000
38	134154100 Frigidaire Screw 10-32 x 0.375 Co
39	WCI F078101-000
40	WCI F076793-100
41	NUT (2)
42	WASHER (2)
43	INSULATOR, FEMALE (2)
44	INSULATOR, MALE (2)
45	HEAT ELEMENT PKG (PACKAGE CONTAINS ELEMENT, INSULATORS,
46	HTR. HOUSING
48	CLIP (11)
49	WCI F131735-000
