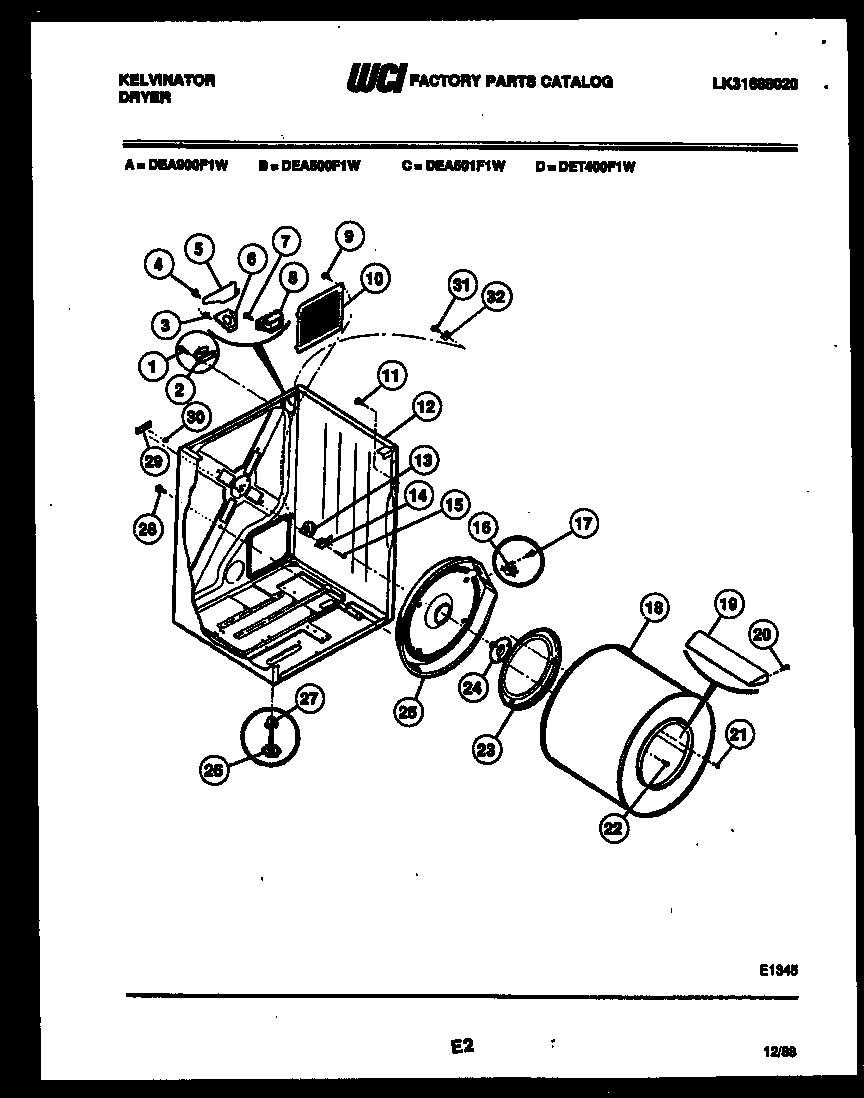

DEA500F1D 02 – CABINET, DRUM AND BLOWER HOUSING

DEA500F1D 02 – CABINET, DRUM AND BLOWER HOUSING

Written by

in

DEA500F1D 02 – CABINET, DRUM AND BLOWER HOUSING

Products

PositionProduct
*61951WCI 5303281153]
1WCI 08011338
2WCI 3281175
3SCREW (2)
4SCREW (1)
5TERMINAL BLOCK COVER (1)
6WCI 3281040
7WCI 3281024
8134037400 Frigidaire Block
10COVER PLATE (1)
12DOOR-OUTER-WHEAT
13131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14131724301 Frigidaire Dryer Drum Bearing Bracket
15131205400 Frigidaire Screw
16THERMOSTAT (1)
17SCREW (2)
18DRUM (1)
19137552900 Frigidaire Vane
20131382300 Frigidaire Screw-VANE
21SCREW (3)
22SCREW (INCLUDED IN REAR BEARING KIT) (3)
233204254 Frigidaire Baffle Assembly
245303931781 Frigidaire Shaft
253937010 Frigidaire Dryer Heating Element Coil Kit
26WCI 3281032
27WCI 3201202
28SCREW (4)
295303281020 Frigidaire Ball Clip
305303281019 Frigidaire Ball Assembly
31134154100 Frigidaire Screw 10-32 x 0.375 Co
32WASHER
343202786 Frigidaire Terminal Block
35131472100 Frigidaire Dryer Insulator Heater Coil
