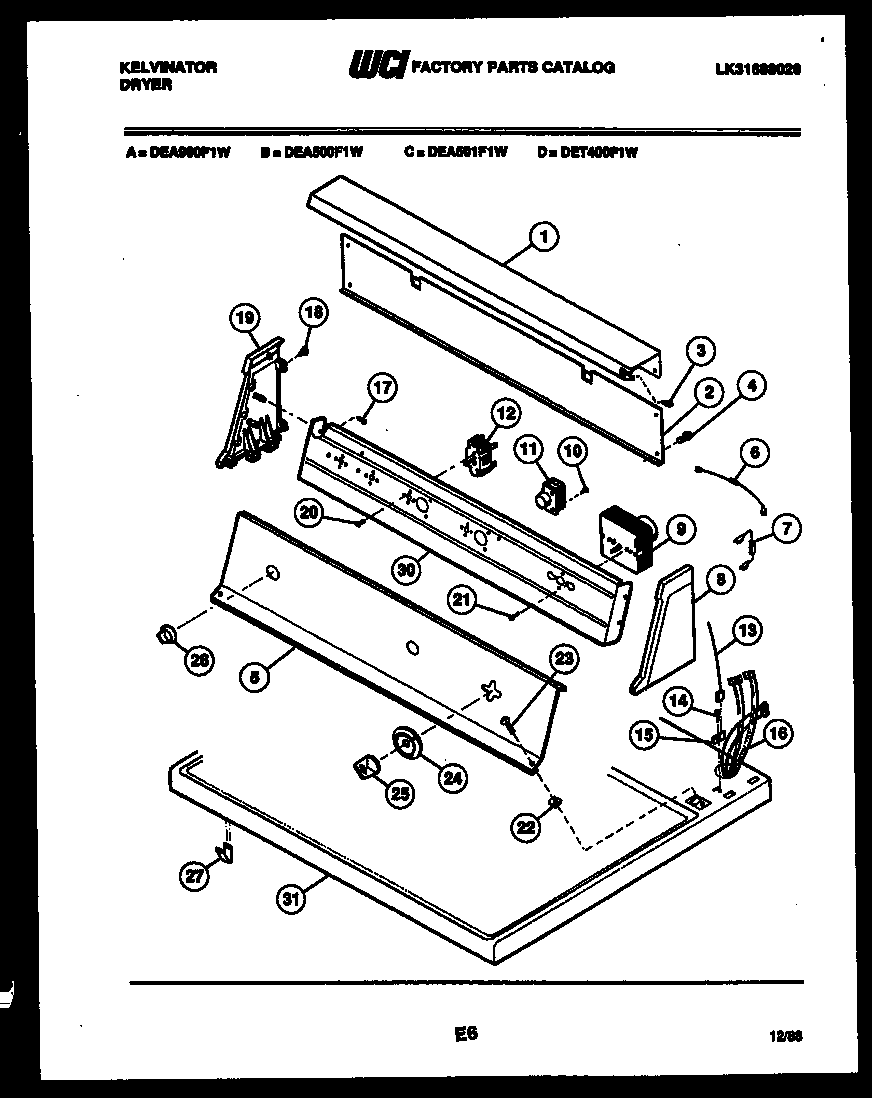

DEA500F1T 04 – CONSOLE AND CONTROL PARTS

DEA500F1T 04 – CONSOLE AND CONTROL PARTS

Written by

in

DEA500F1T 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1WCI 3201609
2WCI 3201349
3WCI 08010825
45303015671 Frigidaire Bracket Termination Screw
5WCI 3201610
6RESISTOR
8WCI F139719-000
9WCI 3201383
10WCI 08010804
11WCI 01132293
12WCI 3201615
13WCI 3201385
14131243800 Frigidaire Screw
15WCI 3161198
16A5303303590 Frigidaire Dryer 4.0" Cable Tie
16WCI 3201307
17131205100 Frigidaire Screw
18WCI 08010830
19WCI F139719100
20WCI 3161259
21SCREW (2)
22WCI 08001912
23WCI 08011318
24WCI 08015702
25KNOB TIMER
26WCI 08008462
27SPRING CATCH
30BRACKET-CONTROL
