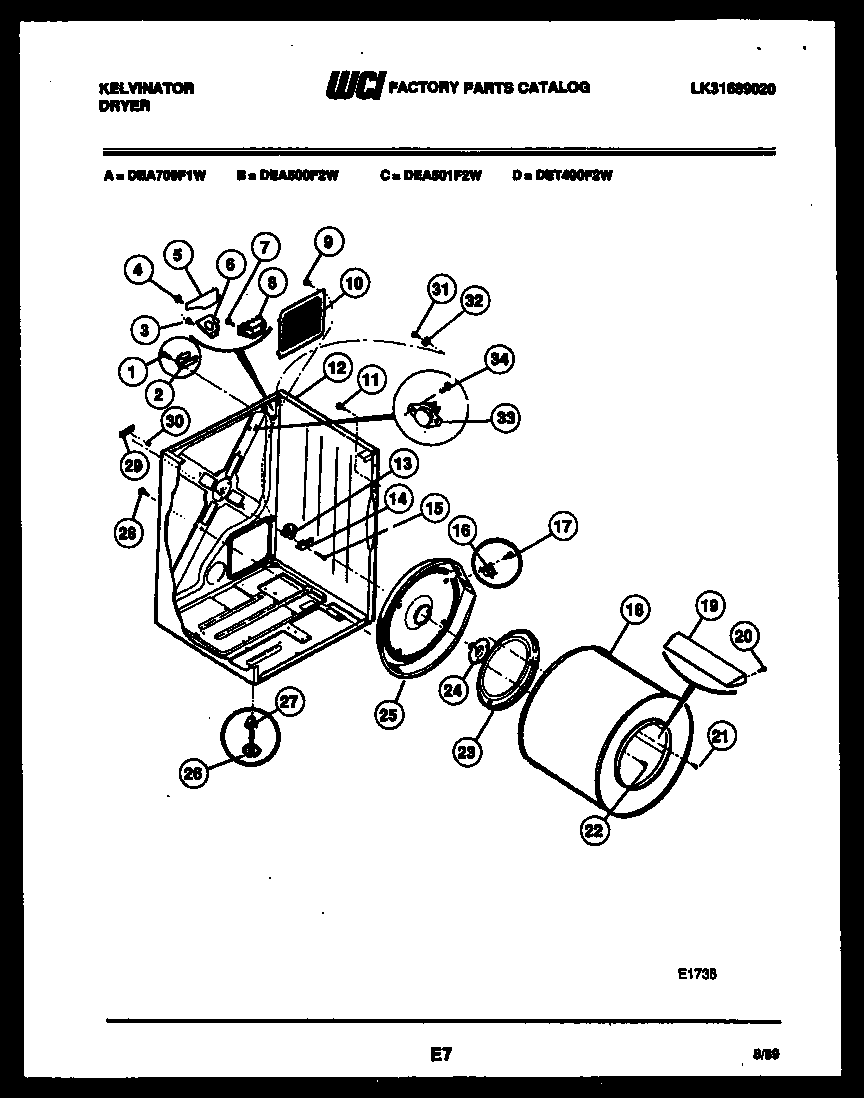

DEA500F2W 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
*97893	WCI 5303281153]
1	WCI 08011338
2	WCI 3205811
3	SCREW (2)
4	SCREW (1)
5	TERMINAL BLOCK COVER (1)
6	WCI 3281040
7	WCI 3281024
8	134037400 Frigidaire Block
10	COVER PLATE (1)
12	CABINET ASSEMBLY (WHITE) (1)
13	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14	131724301 Frigidaire Dryer Drum Bearing Bracket
15	131205400 Frigidaire Screw
16	THERMOSTAT (1)
17	SCREW (2)
18	DRUM (1)
19	137552900 Frigidaire Vane
20	131382300 Frigidaire Screw-VANE
21	SCREW (3)
22	SCREW (INCLUDED IN REAR BEARING KIT) (3)
23	3204254 Frigidaire Baffle Assembly
24	5303931781 Frigidaire Shaft
25	3937010 Frigidaire Dryer Heating Element Coil Kit
26	WCI 3281032
27	WCI 3201202
28	SCREW (4)
29	5303281020 Frigidaire Ball Clip
30	5303281019 Frigidaire Ball Assembly
31	134154100 Frigidaire Screw 10-32 x 0.375 Co
32	WASHER
33	134120900 Frigidaire Dryer Limiter Thermal
34	WCI 08010804
