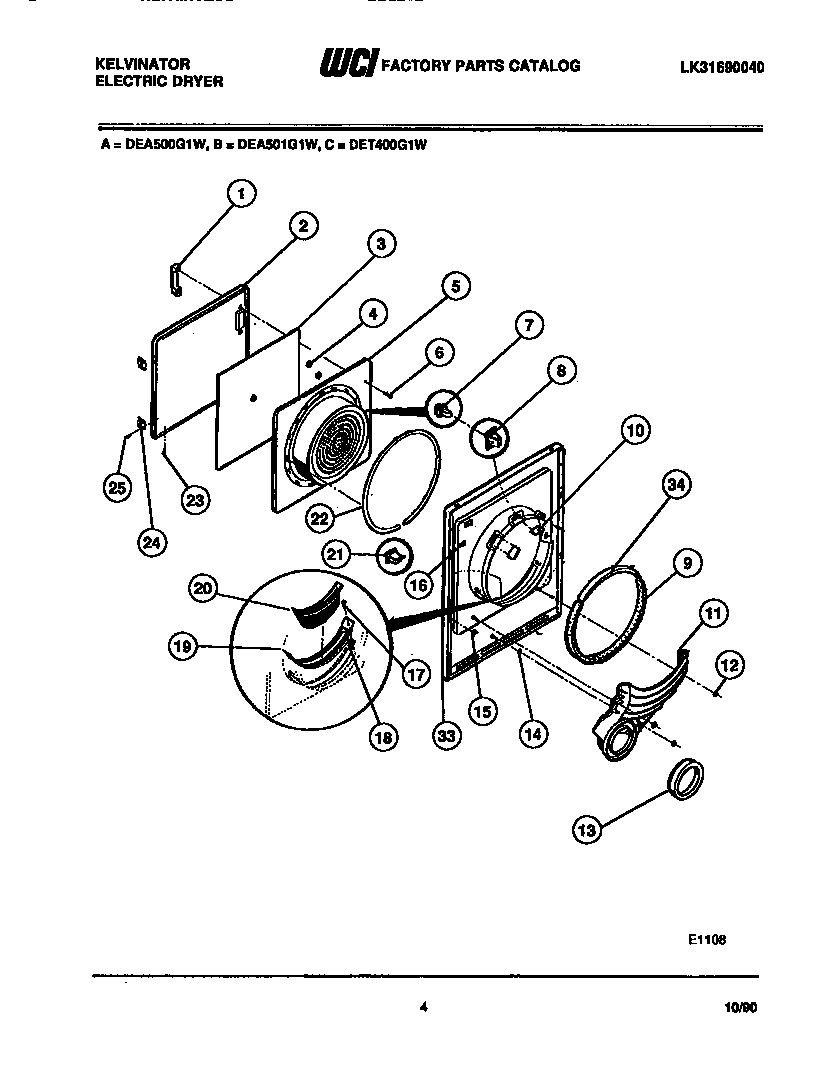

DEA500G1D 03 – DOOR PARTS

Products

Position	Product
1	WCI 5303281053
2	PANEL-O.D. ALMD
3	SHIELD, HEAT
4	SPACER (2)
4	WCI 3201205
5	PANEL-I.D. ALMD
6	WCI 5303281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	WCI 5303281049
10	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
11	WCI 5308015173
12	WCI 3281089
13	134417000 Frigidaire Seal
14	5300809968 Frigidaire Dishwasher P-1 Washer
15	CLIP GUIDE (4)
16	CLIP
17	131420300 Frigidaire Screw
18	CLIP
19	WCI 5303281060
20	WCI 5303281059
21	WCI 5303281044
22	GASKET, DOOR
24	HINGE, DOOR (2)
25	SCREW (8)
33	WCI 3205815
34	WCI 3201264
