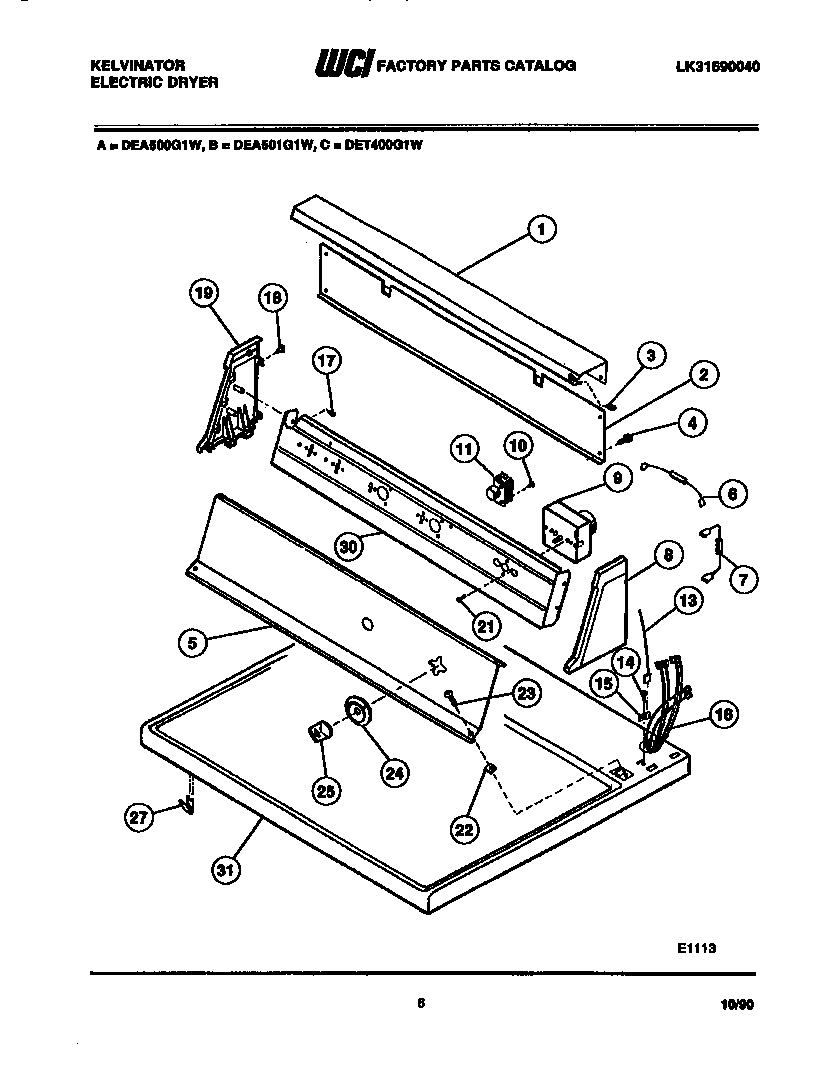

DEA500G1D 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201609
2	WCI 3201349
3	WCI 5308010825
4	5303015671 Frigidaire Bracket Termination Screw
5	PANEL - CONTROL
6	RESISTOR
7	RESISTOR, 3.0K
8	WCI 3206005
9	DRYER TIMER
10	WCI 08010804
11	SWITCH - PUSH TO START
13	WCI 3201385
13A	WCI 5303212827
14	131243800 Frigidaire Screw
15	WCI 5379171000
16	WCI 3206009
16A	5303303590 Frigidaire Dryer 4.0" Cable Tie
16B	CLIP (2)
17	131205100 Frigidaire Screw
18	WCI 5303210923
19	WCI 3206007
21	SCREW (2)
22	CLIP
23	WCI 3205820
24	WCI 5308015702
25	KNOB TIMER
27	3205821 Frigidaire Clip
30	WCI 3205822
31	PANEL - TOP ALMD
