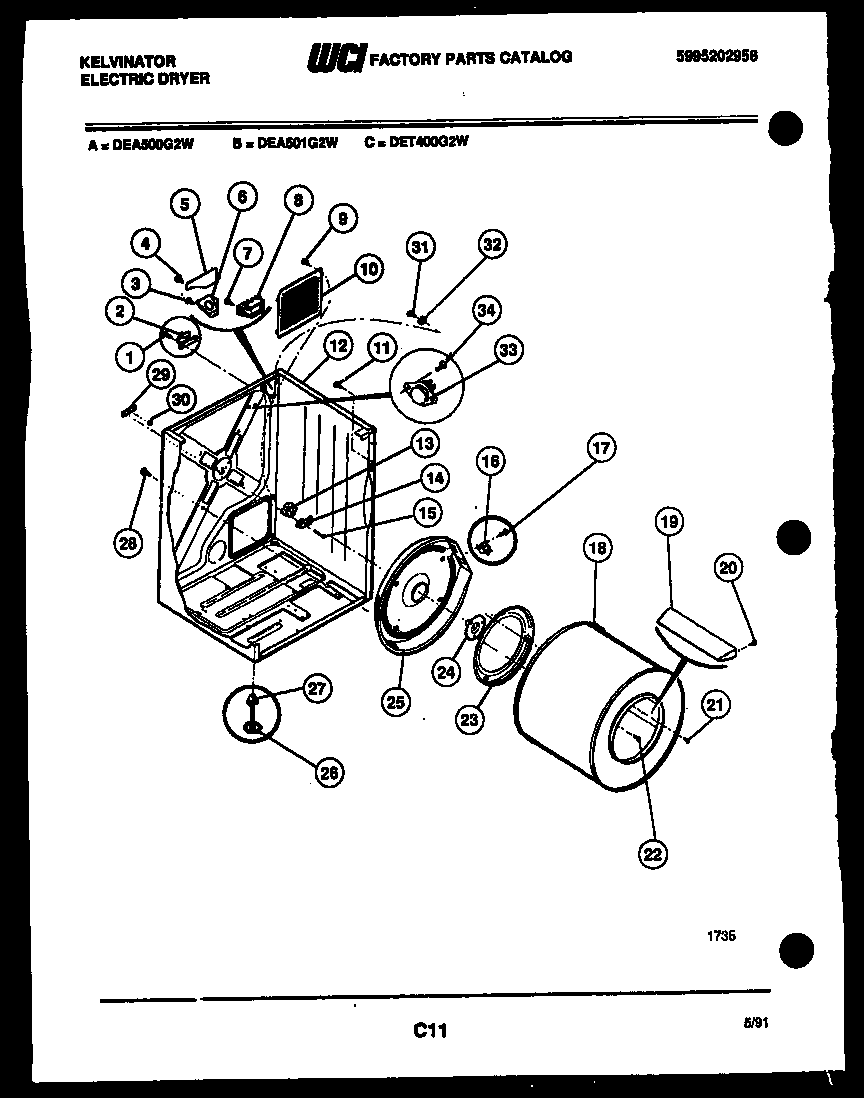

DEA500G2T 02 – CABINET PARTS

Products

Position	Product
*18638	WCI 5303281153]
1	WCI 08011338
2	WCI 3281175
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI 5303211428
6	WCI 3281040
7	WCI 5308015309
8	134037400 Frigidaire Block
10	PLATE-COVER
12	CABINET ASSY-WHEAT (1)
13	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14	131724301 Frigidaire Dryer Drum Bearing Bracket
15	131205400 Frigidaire Screw
16	WCI 5303281113
17	SCREW
18	DRUM (1)
19	137552900 Frigidaire Vane
20	131382300 Frigidaire Screw-VANE
21	WCI 5303207393
22	SCREW (3) (PART OF REAR BEARING KIT.)
23	3204254 Frigidaire Baffle Assembly
24	5303931781 Frigidaire Shaft
25	3937010 Frigidaire Dryer Heating Element Coil Kit
26	BOLT-FOOT (4)
27	WCI 3201202
28	WCI 5303010202
29	5303281020 Frigidaire Ball Clip
30	5303281019 Frigidaire Ball Assembly
31	134154100 Frigidaire Screw 10-32 x 0.375 Co
32	WASHER
33	134120900 Frigidaire Dryer Limiter Thermal
34	WCI 08010804
