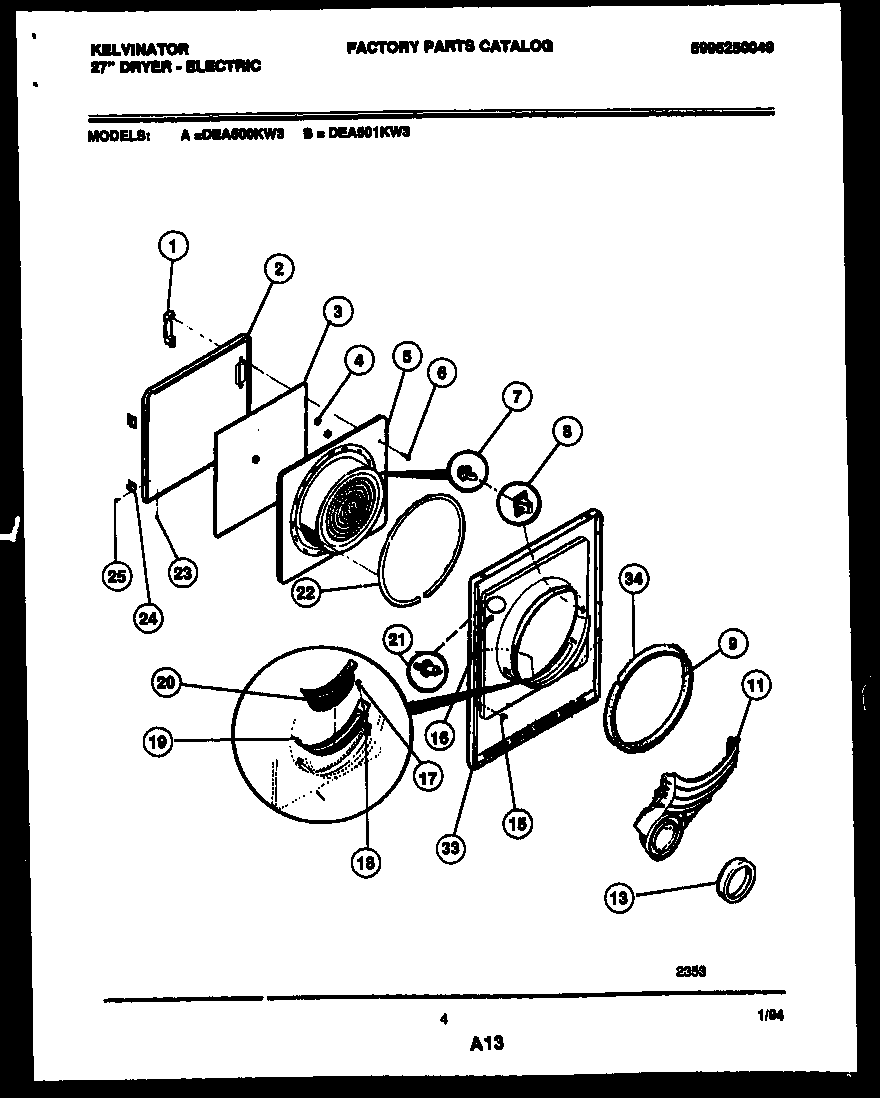

DEA500KD3 03 – DOOR PARTS

Products

Position	Product
1	WCI 5303288839
2	PANEL-O.D. ALMD
3	SHIELD, HEAT
4	WCI 3201205
5	PANEL-I.D. ALMD
6	WCI 5303281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	WCI 5303281049
11	DUCT-AIR
13	134417000 Frigidaire Seal
15	CLIP GUIDE (4)
16	CLIP
17	131420300 Frigidaire Screw
18	CLIP
20	WCI 5303281059
21	SWITCH-DOOR
22	GASKET, DOOR
24	HINGE, DOOR (2)
25	SCREW (8)
33	PANEL, FRONT, ALMOND
34	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
