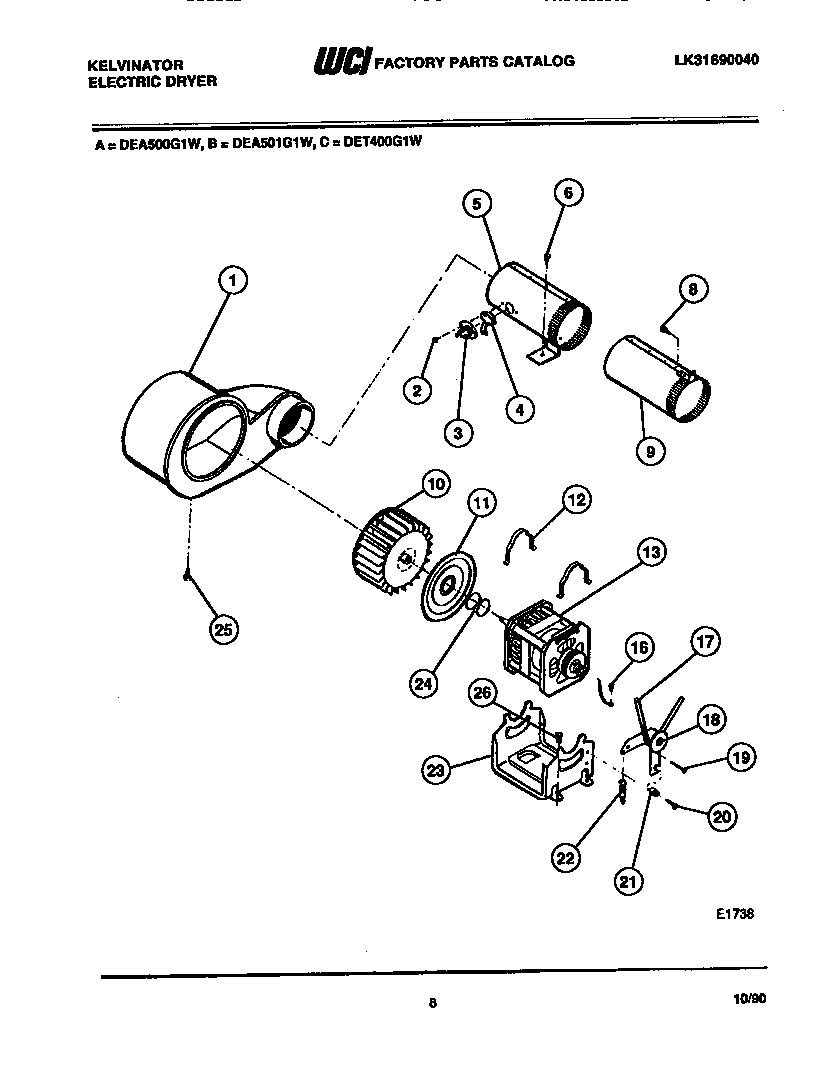

DEA501G1W 05 – BLOWER AND DRIVE PARTS

Products

Position	Product
1	WCI 5303281014
2	SCREW
3	3204307 Frigidaire Dryer Thermostat Control, L135
4	WCI 5303206879
5	TUBE ASSEMBLY THERMOSTAT (1)
6	SCREW
8	5303015671 Frigidaire Bracket Termination Screw
9	WCI 08015262
10	WCI 5303281079
11	WCI 5303281080
12	WCI 3204315
13	WCI 5303201237
16	SCREW (2)
17	5303281154 Frigidaire Dryer Belt (Flat Style)
18	WCI 5300128473
19	SCREW-STOP
20	WCI 3281073
21	WCI 5303281076
22	5303281085 Frigidaire Spring Idler
24	WCI 5303281083
25	WCI 3281036
26	WCI 3281077
