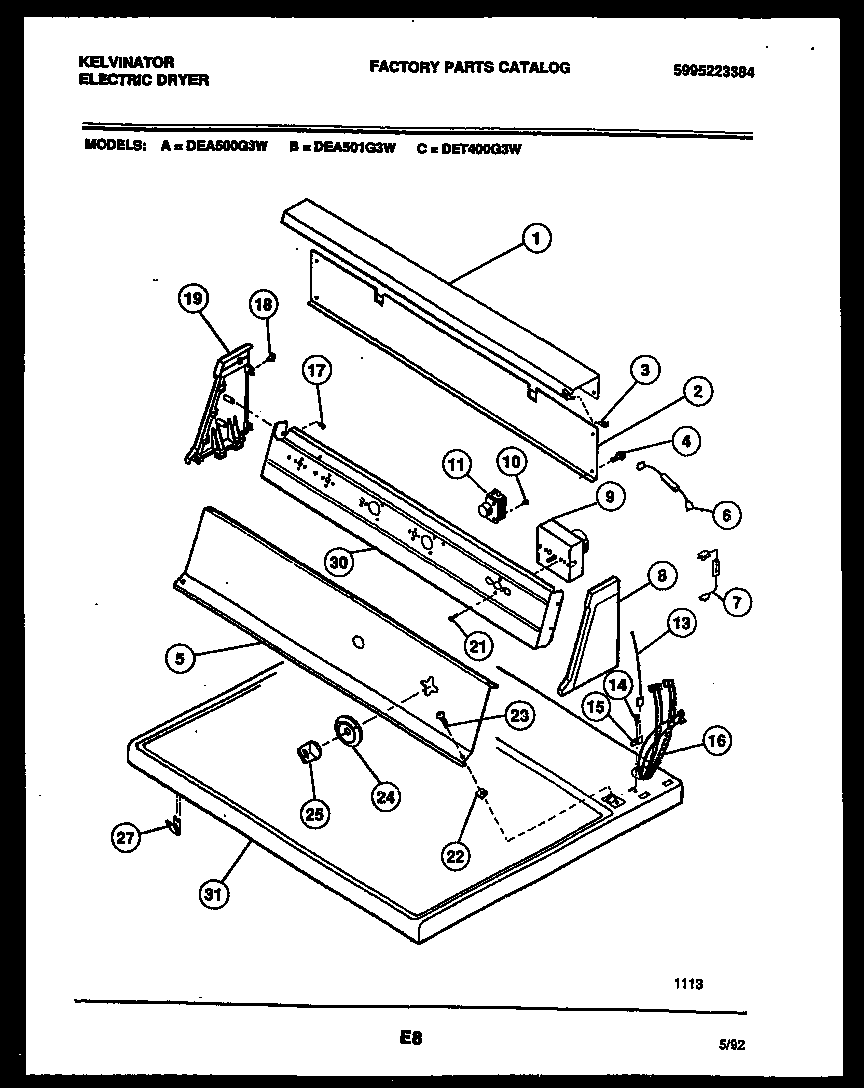

DEA501G3D 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1WCI 3201609
2WCI 3201349
3WCI 5308010825
45303015671 Frigidaire Bracket Termination Screw
5PANEL – CONTROL
6RESISTOR
7RESISTOR, 3.0K
8WCI 3206005
9WCI 3201382
10WCI 08010804
11SWITCH – PUSH TO START
13AWCI 5303212827
13WCI 3201385
14131243800 Frigidaire Screw
15WCI 5379171000
16WCI 5303270869
16A5303303590 Frigidaire Dryer 4.0" Cable Tie
16BCLIP (2)
17131205100 Frigidaire Screw
18WCI 5303210923
19WCI 3206007
21SCREW (2)
22CLIP
23WCI 3205820
24WCI 5308015702
25KNOB TIMER
273205821 Frigidaire Clip
30WCI 3205822
