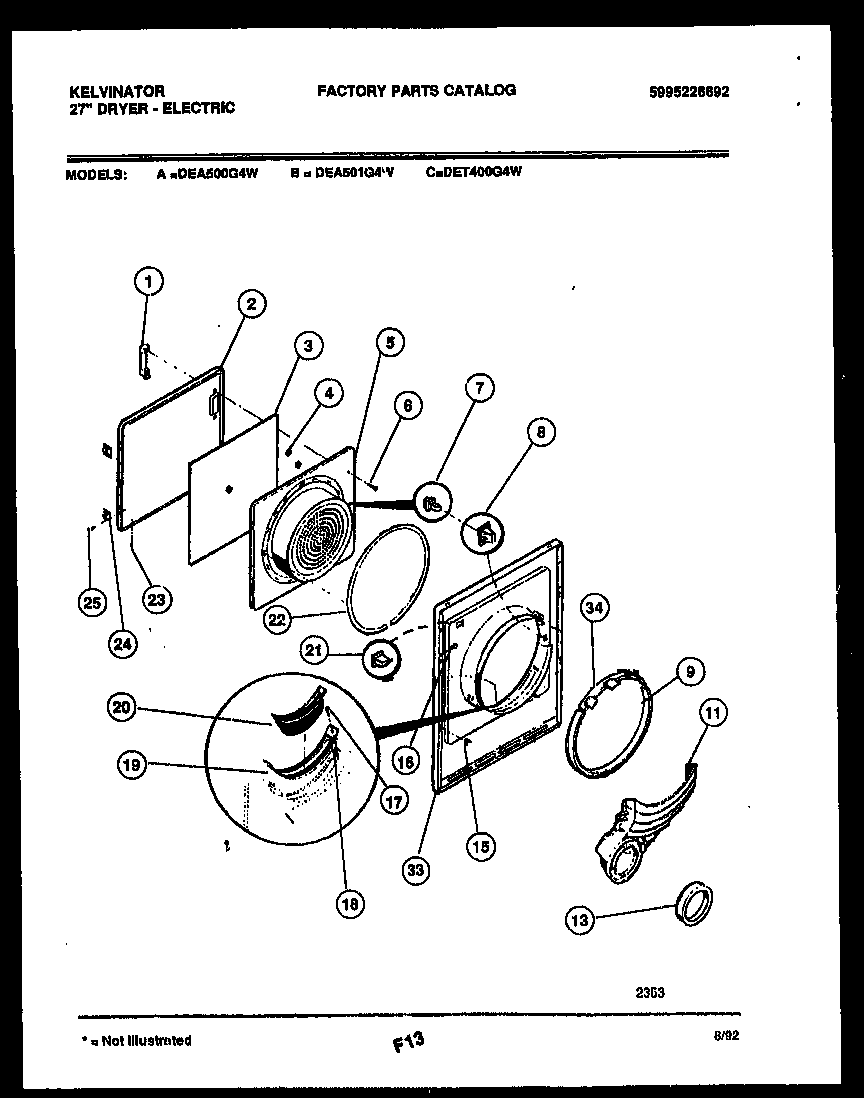

DEA501G4W 03 – DOOR PARTS

DEA501G4W 03 – DOOR PARTS

Written by

in

DEA501G4W 03 – DOOR PARTS

Products

PositionProduct
1WCI 5303281053
2PANEL-O.D. WHITE
3SHIELD, HEAT
4SPACER (2)
4AWCI 3201205
5PANEL – ID WHITE
6WCI 5303281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9WCI 5303281049
11WCI 131002500
13134417000 Frigidaire Seal
15CLIP GUIDE (4)
16CLIP
17131420300 Frigidaire Screw
18CLIP
19WCI 5303281060
20WCI 5303281059
21SWITCH-DOOR
22GASKET, DOOR
24HINGE, DOOR (2)
25SCREW (8)
33WCI 5303290082
345303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
