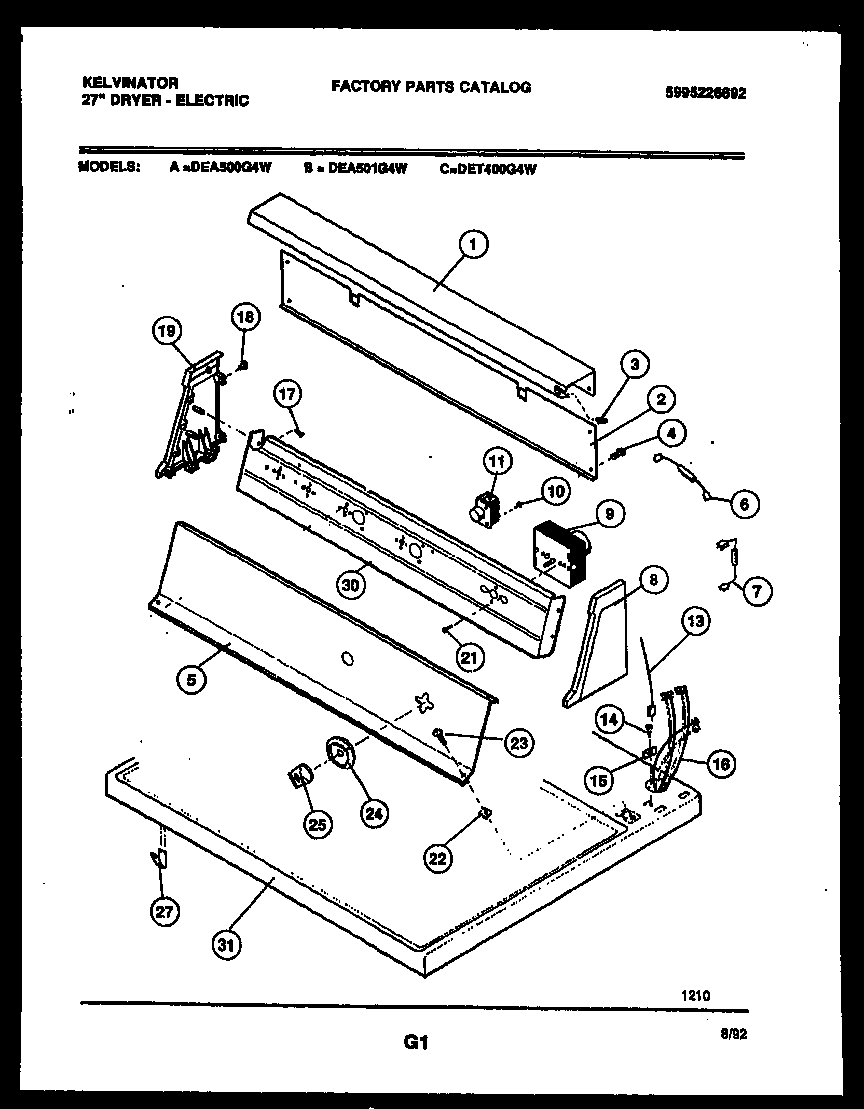

DEA501G4W 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201609
2	WCI 3201349
3	WCI 5308010825
4	5303015671 Frigidaire Bracket Termination Screw
5	PANEL - CONTROL
6	RESISTOR
7	RESISTOR, 3.0K
9	WCI 3201614
9	DRYER TIMER
10	WCI 08020804
11	SWITCH - PUSH TO START
13A	WCI 5303212827
13	WCI 3201385
14	131243800 Frigidaire Screw
15	WCI 5379171000
16A	5303303590 Frigidaire Dryer 4.0" Cable Tie
16	WCI 131007000
16B	CLIP (2)
17	131205100 Frigidaire Screw
18	WCI 5303210923
19	WCI 3206007
21	SCREW (2)
22	CLIP
23	WCI 3205820
24	WCI 5308015702
25	KNOB TIMER
27	3205821 Frigidaire Clip
30	WCI 3205822
31	PANEL-TOP-WHITE
