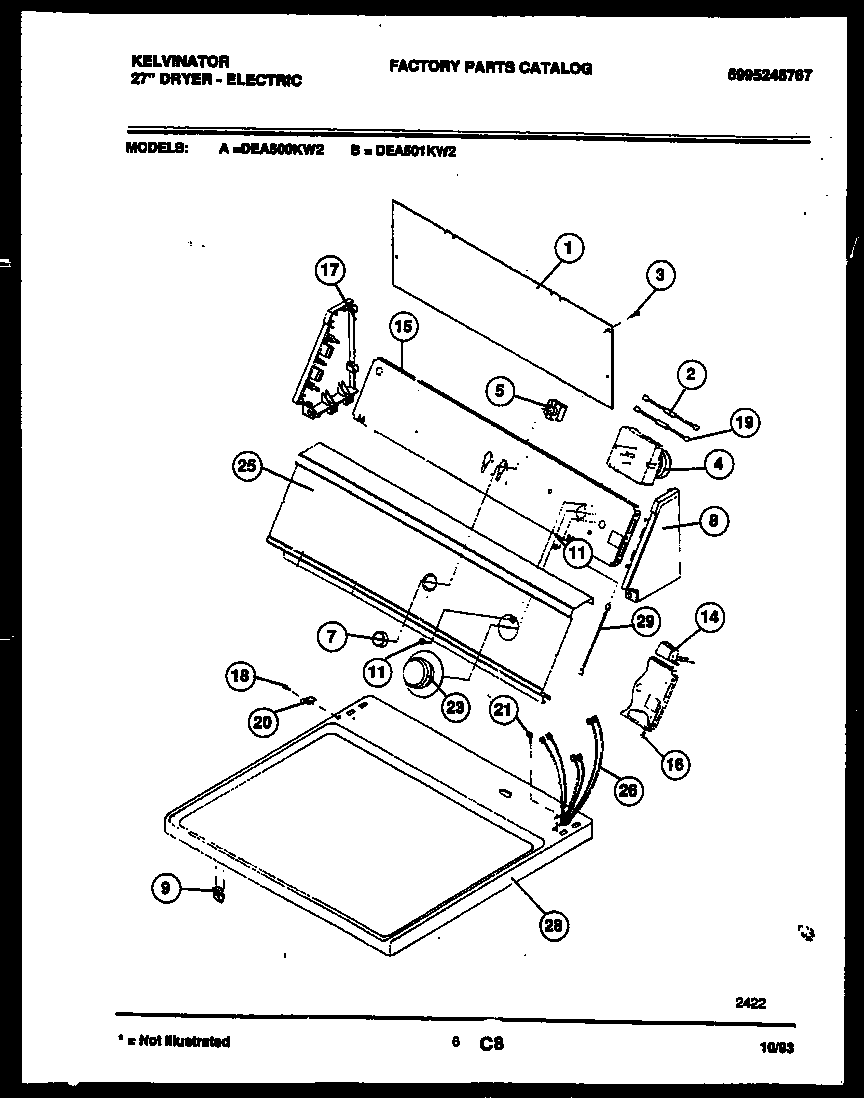

DEA501KW2 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
2	RESISTOR-POWER, 4.4K
3	131205100 Frigidaire Screw
4	131062300 Frigidaire Timer
5	WCI 131048000
7	WCI 131032902
8	WCI 5303291352
9	3205821 Frigidaire Clip
11	218359202 Frigidaire Refrigerator Screw
14	WCI 5303210285
15	BRACKET - CONTROL
16	5303015671 Frigidaire Bracket Termination Screw
17	WCI 5303291344
18	WCI 5303289526
19	RESISTOR, 3.0K
20	CLIP
21	131243800 Frigidaire Screw
23	WCI 5303296328
25	WCI 131082800
26	WCI 131112300
28	PANEL-TOP-WHITE
29	WCI 131062202
