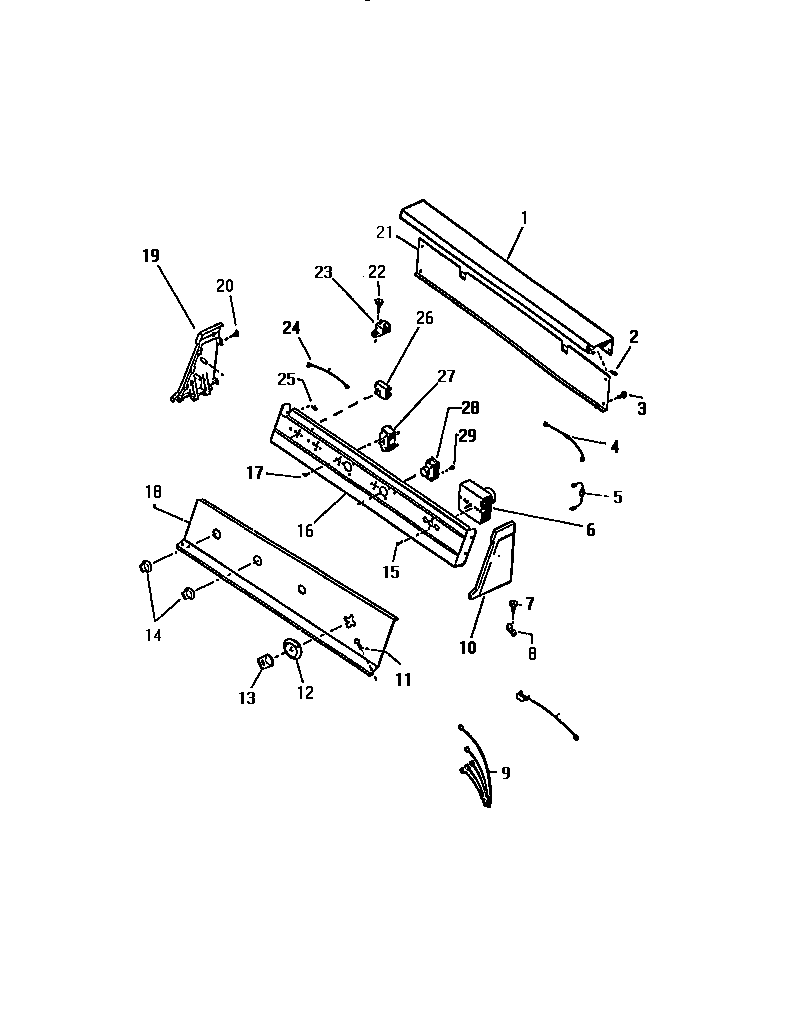

DEA600A1D 02 – CONSOLE & CONTROLS

Products

Position	Product
*42645	WCI F136345-000
*42646	WCI F06312-000
*42641	CLIP HARNESS TO RH CAB (2)
*42643	5304464772 Frigidaire Refrigerator Wire Tie
*42642	TIE-HARN TOP PNL (NON-ILLUSTRATED)
1	WCI F139795-000
2	WCI F139635-000
4	WCI F065111-016
5	RESISTOR (ELECTRIC MODELS ONLY)
6	TIMER MOTOR
6A	WCI F139771-000
7	131243800 Frigidaire Screw
8	WCI F079171-000
9	WCI F140178-000
10	WCI F139719-000
11	WCI F140203-000
12	WCI F078951-000
13	WCI F078950-100
15	WCI F060796-000
16	WCI F140183-022
18	WCI F139943-100
19	WCI F139719-100
20	WCI F139577-000
21	WCI F139230-026
22	5303015671 Frigidaire Bracket Termination Screw
23	CONTROL
25	131205100 Frigidaire Screw
28	PUSH TO START SWITCH
29	SEMS SCREW (2)
