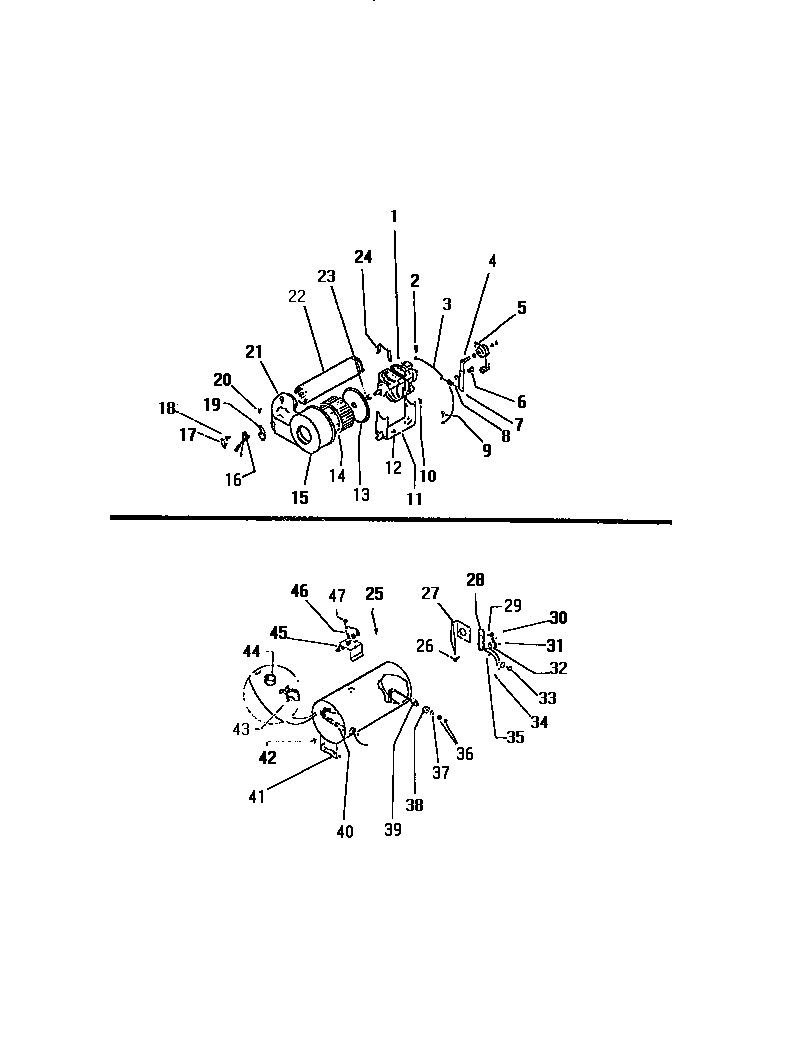

DEA600A2V 05 – BLOWER & HEATER HOUSING COMPONENTS

Products

Position	Product
*69701	COMPLETE HTR ASSEMBLY
*69705	WCI F133285-000
1C	MOTOR SWITCH (GE)
1	WCI F137079-000
1B	WCI F137078-000
1A	MOTOR SWITCH (EMERSON)
2	WCI F132144-000
3	GROUND WIRE, ELECTRIC
4	IDLER WHEEL ASSEMBLY (IDLER BAR ASSEMBLY WHEEL AND WASHE
5	BELT
6	WCI F079485-000
7	WCI F076822-000
8	WCI F131652-000
10	SEMS SCREW
11	WCI F078190-026
12	5303015671 Frigidaire Bracket Termination Screw
13	WCI F064354-028
14	WCI F076829-000
15	WCI F078201-100
16	WCI F136777-000
17	THERMO-CONT (ELECTRIC MODELS ONLY)
19	BRACKET
22	EXHAUST PIPE ASSEMBLY
23	WCI F064360-000
24	MOTOR CLIP (2)
27	WCI F063536-026
28	5304409888 Frigidaire Oven Terminal Block with Hardware
29	SCREW (6)
31	NUT (4)
32	WCI F073329-000
33	134154100 Frigidaire Screw 10-32 x 0.375 Co
34	WCI F078101-000
35	WCI F076793-100
36	NUT (2)
37	WASHER (2)
38	INSULATOR, FEMALE (2)
39	INSULATOR, MALE (2)
40	HEAT ELEMENT PKG (PACKAGE CONTAINS ELEMENT, INSULATORS,
41	HTR. HOUSING
43	CLIP (11)
44	WCI F131735-000
45	WCI F076956-000
46	THERMO-SAFETY
