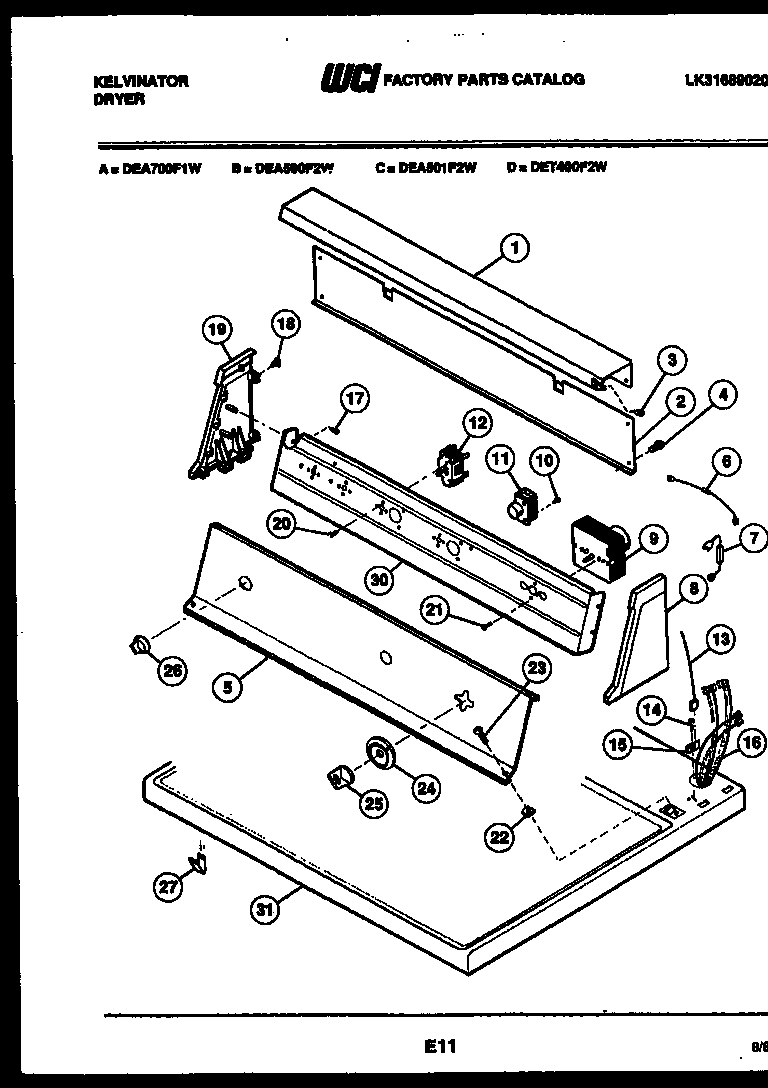

DEA700F1W 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201609
2	WCI 3201349
3	WCI 08010825
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI 3206001
6	RESISTOR
8	WCI 3206005
9	WCI 3201383
10	WCI 08010804
11	WCI 01132293
12	WCI 3201615
13	WCI 3201385
14	131243800 Frigidaire Screw
15	WCI 3161198
16	WCI 3205861
16A	5303303590 Frigidaire Dryer 4.0" Cable Tie
17	131205100 Frigidaire Screw
18	WCI 08010830
19	WCI 3206007
20	WCI 3161259
21	SCREW (2)
22	WCI 3281192
23	WCI 3205820
24	WCI 08015702
25	KNOB TIMER
26	WCI 08008462
27	3205821 Frigidaire Clip
30	WCI 3205822
31	PANEL TOP-WHITE
