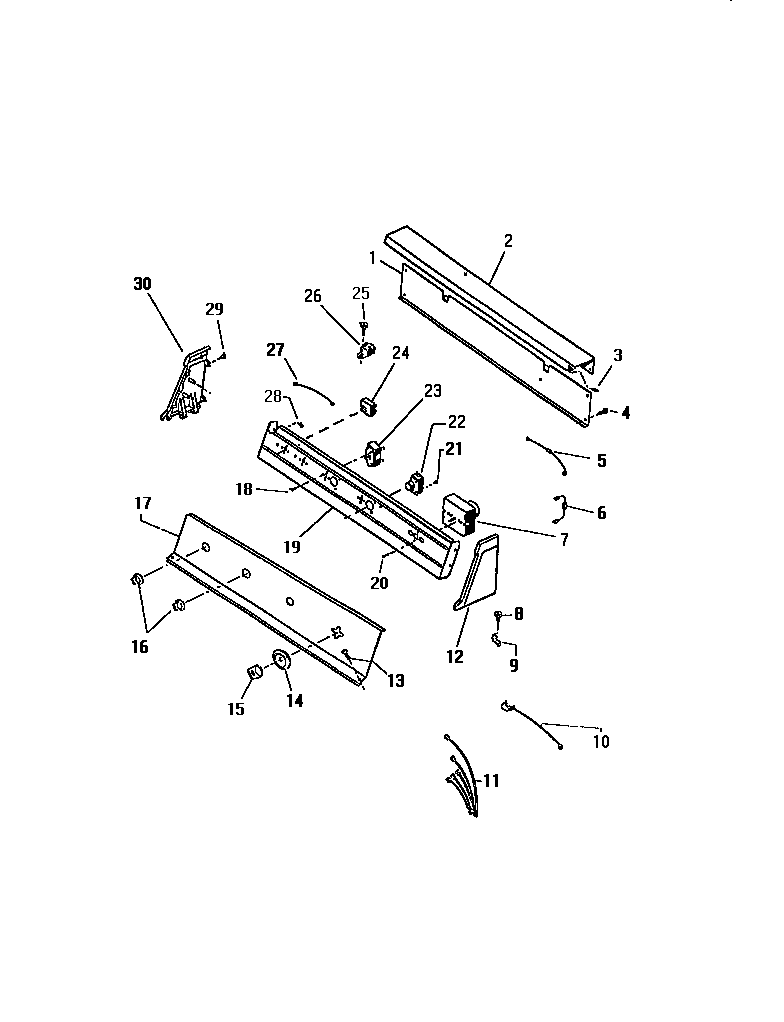

DEA800A2T 02 – CONSOLE & CONTROLS

Products

Position	Product
*69684	WCI F136345-000
*69680	TIE-HARN TOP PNL (NON-ILLUSTRATED)
*69682	5304464772 Frigidaire Refrigerator Wire Tie
*69681	CLIP HARNESS TO RH CAB (2)
*69685	WCI F063124-000
1	WCI F139230-026
2	WCI F139795-000
3	WCI F139635-000
5	WCI F065111-016
6	RESISTOR (ELECTRIC MODELS ONLY)
7A	TIMER MOTOR, MALLORY
7	WCI F139742-000
8	131243800 Frigidaire Screw
9	WCI F079171-000
10	WCI F138816-000
11	WCI F140848-000
12	WCI F139719-000
13	WCI F140203-000
14	WCI F078951-000
15	WCI F078950-100
16	ROTARY KNOB (2)
17	WCI F139949-100
18	SCREW SWITCH TO BRACKET ( 2 )
19	WCI F140183-022
20	WCI F060796-000
21	SEMS SCREW (2)
22	PUSH TO START SWITCH
23	ROTARY SWITCH
24	WCI F139948-000
25	5303015671 Frigidaire Bracket Termination Screw
26	CONTROL
27	WCI F065898-016
28	131205100 Frigidaire Screw
29	WCI F139577-000
30	WCI F139719-100
