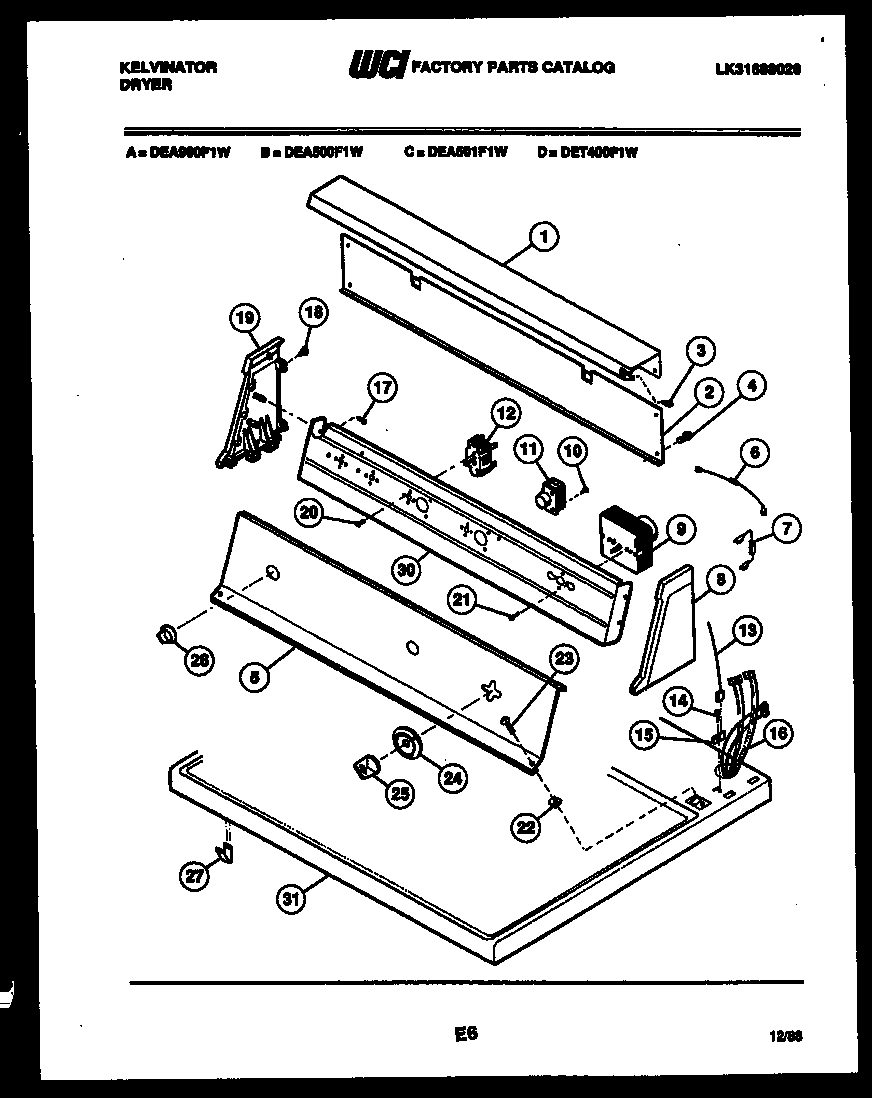

DEA900F1W 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201609
2	WCI 3201349
3	WCI 08010825
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI 3201612
6	RESISTOR
7	WCI 3201384
8	WCI F139719-000
9	WCI 3201382
10	WCI 08010804
11	WCI 01132293
13	WCI 3201385
14	131243800 Frigidaire Screw
15	WCI 3161198
16A	5303303590 Frigidaire Dryer 4.0" Cable Tie
16	WCI 3201387
17	131205100 Frigidaire Screw
18	WCI 08010830
19	WCI F139719100
21	SCREW (2)
22	WCI 08001912
23	WCI 08011318
24	WCI 08015702
25	KNOB TIMER
27	SPRING CATCH
30	BRACKET-CONTROL
31	PANEL-TOP-WHITE
