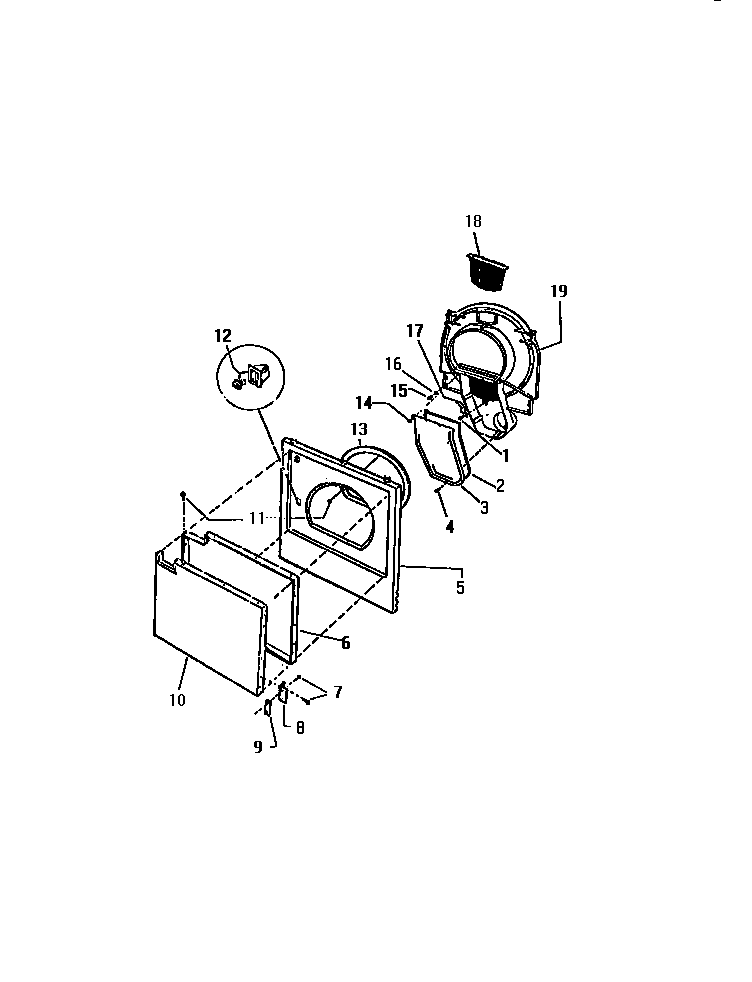

DEC310A1D 02 – DOOR PANEL

Products

Position	Product
*62285	WCI F140647-000
*62289	INSTALLATION INSTRUC.
*62288	WCI F140648-000
*62287	WCI F140756-000
*62286	TECH SHEET
*62301	WCI F134355-000
*62292	PAINT-6 OZ.-ALMOND
2	WCI F078861-000
3	WCI F078197-026
4	WCI F066409-000
5	DOOR OPENING PNL (ALMD)
6	WCI F140691-028
8	WCI F078228-000
9	WCI F078176-000
10	WCI F140692-039
11	SCREW (3)
12	5366021400 Frigidaire Door Latch & Metal Strike
13	WCI F078166-100
14	WCI F130140-000
15	5303015671 Frigidaire Bracket Termination Screw
16	WCI F079528-000
17	WCI F079990-000
18	WCI F140717-000
19A	EXH. & LINT HSG. WITH DRUM GASKET
19	WCI F133009-000
