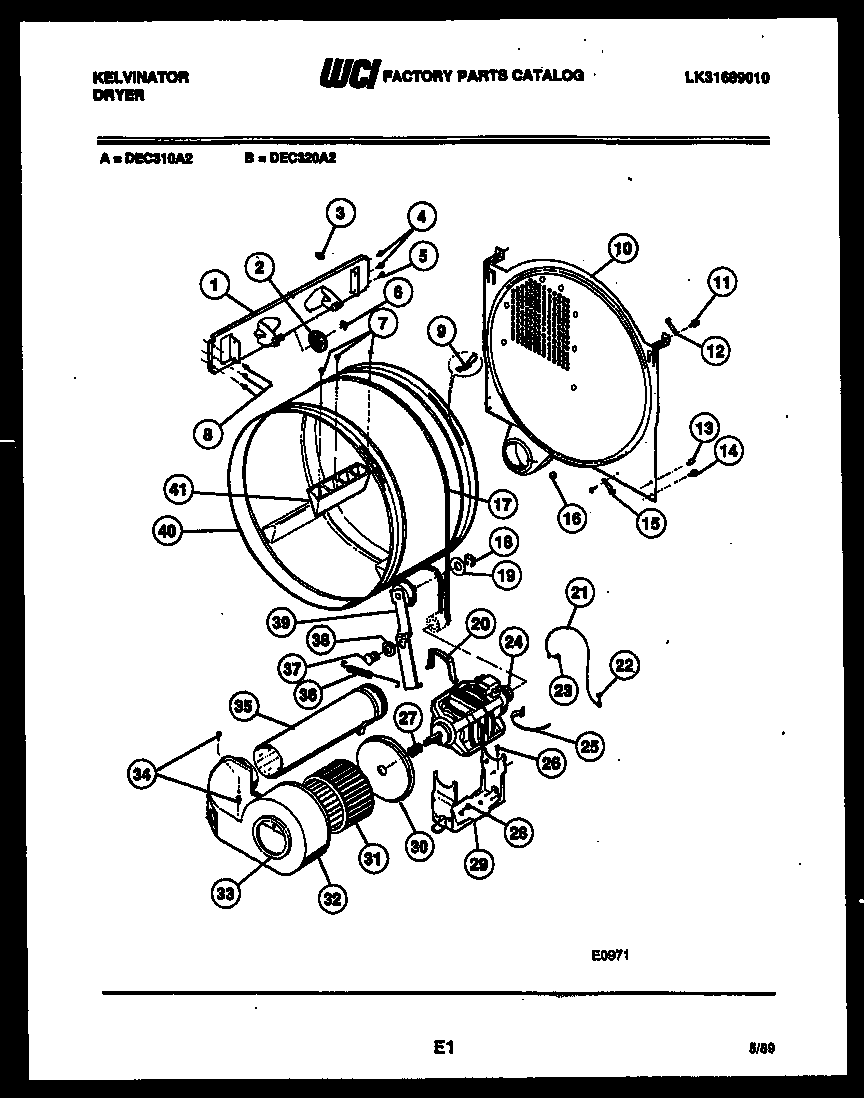

DEC310A2D 04 – DRUM AND BLOWER PARTS

Products

Position	Product
1	WCI F078185-100
2	WHEEL, TIRE, NYLINER ASSEMBLY (NOTE 1) (5)
3	SPEED CLIP, PRESSURE HOSE TO CABINET (2)
6	WCI F076978-000
9	WCI F131736-000
10	WCI F078841-000
15	CLIP-HARNESS TO PLENUM
16	WCI F131168-000
17	WCI F078448-000
18	F073088-000 Frigidaire Ring
19	5360792000 Frigidaire Washer
20	MOTOR CLIP (2)
21	WCI F132353-000
23	WCI F132144-000
24	WCI F140566-000
24A	MOTOR SWITCH (GE)
25	5304464772 Frigidaire Refrigerator Wire Tie
26	SEMS SCREW
27	WCI F064360-000
28	5303015671 Frigidaire Bracket Termination Screw
29	WCI F078190-026
30	WCI F064354-028
31	WCI F140935-000
32	WCI F078181-000
33	WCI F076961-000
35	WCI F140414-000
36	WCI F130396-000
37	WCI F079485-000
38	WCI F076822-000
39	IDLER WHEEL ASSEMBLY (IDLER BAR ASSEMBLY WHEEL AND WASHE
40A	WCI F079436-000
40	WCI F078183-032
41	WCI F078188-100
