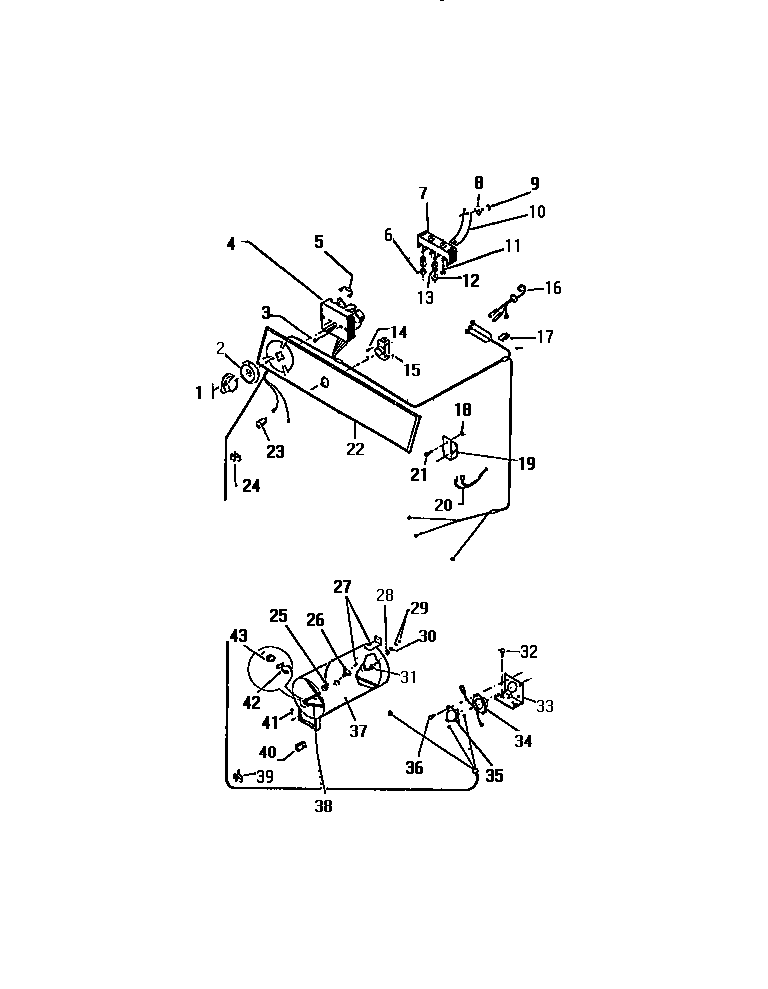

DEC320A1W 05 – CONSOLE, CONTROLS, HEAT ASSY.

Products

Position	Product
*62300	CLIP HARNESS TO RH CAB (2)
*62297	WCI F140760-000
*62296	TIMER MOTOR
*62299	WCI F139540-000
*62293	WCI FA2751
1	KNOB-TIMER
2	WCI F140767-000
3	WCI F60796
4	WCI F140779-000
5	WCI F065111-011
5B	RESISTOR (ELECTRIC MODELS ONLY)
5A	WCI F064111-017
6	NUT (4)
7	5304409888 Frigidaire Oven Terminal Block with Hardware
8	WCI F078101-000
9	134154100 Frigidaire Screw 10-32 x 0.375 Co
10	WCI F076793-100
11	SCREW (6)
12	WCI F73340
13	WCI F073329-000
14	WCI F000137505
15	PUSH TO START SWITCH
17	WCI F131169-000
18	WCI FA2758
19	WCI F133242
20	WCI F139152
21	WCI F135022
22	WCI F140553-000
23	DOOR SWITCH
24	CLIP, HARNESS TO RH SIDE PANEL (3)
26	WCI F132267
27	5303015671 Frigidaire Bracket Termination Screw
28	INSULATOR, FEMALE (2)
29	NUT (2)
30	WASHER (2)
31	INSULATOR, MALE (2)
32	WCI F130439
33	BRACKET
34	WCI F136777-000
35	WCI F136776-000
36	WCI F130220000
37	WCI F130228-2
38	WCI F134266-100
39	CLIP, HARNESS
40	WCI F77094
42	WCI F131734
43	WCI F131735
