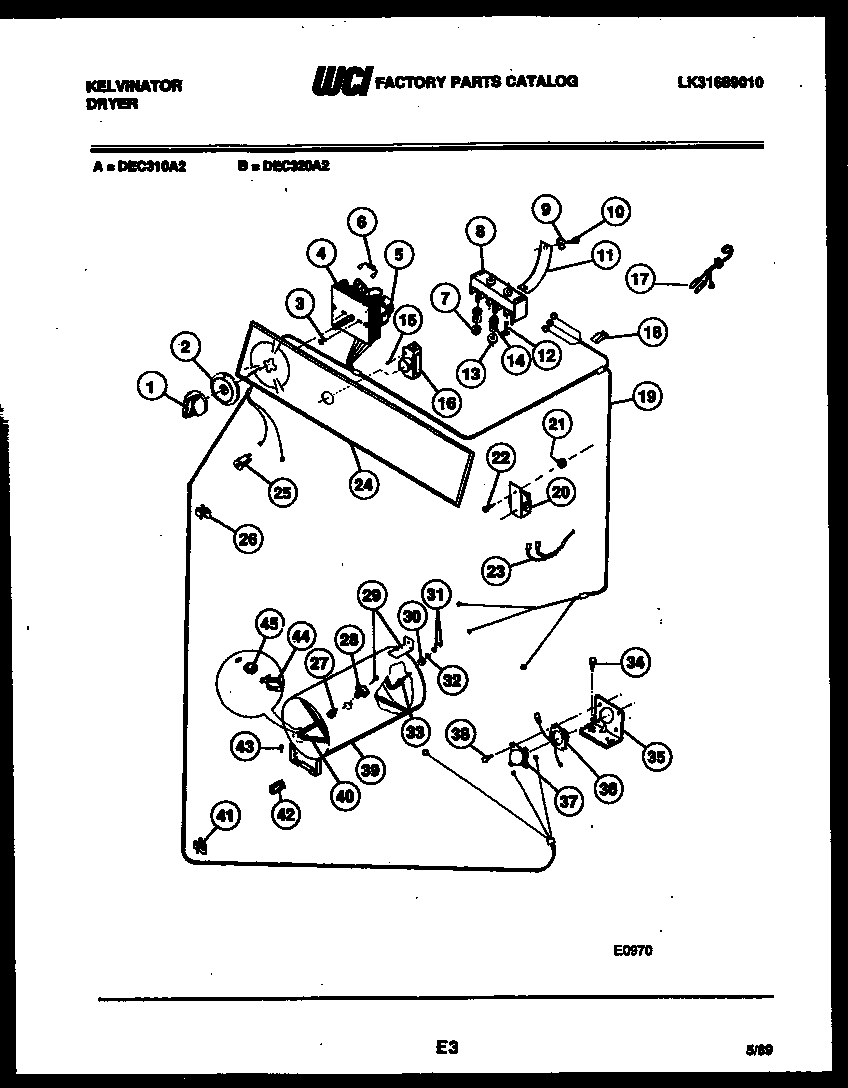

DEC320A2D 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*97320	WCI F139540-000
*97325	CLIP HARNESS TO RH CAB (2)
1	KNOB-TIMER
2	WCI F140767-000
3	WCI F060796-000
4	WCI F140779-000
5	TIMER MOTOR
6	WCI F065111-011
6B	WCI F137488-100
6A	WCI F064111-017
7	NUT (4)
8	5304409888 Frigidaire Oven Terminal Block with Hardware
9	WCI F078101-000
10	134154100 Frigidaire Screw 10-32 x 0.375 Co
11	WCI F076793-100
12	SCREW (6)
14	WCI F073329-000
15	WCI F000137505
16	PUSH TO START SWITCH
18	WCI F131169-000
19	WCI F140760-000
20	CONTROL
21	WCI F002758-000
22	WCI F135022-000
23	WCI F139152-000
24	WCI F140553-000
25	DOOR SWITCH
26A	SPEED CLIP, PRESSURE HOSE TO CABINET (2)
28	WCI F132267-000
29	5303015671 Frigidaire Bracket Termination Screw
30	INSULATOR, FEMALE (2)
31	NUT (2)
32	WASHER (2)
33	INSULATOR, MALE (2)
34	WCI F130439-000
35	BRACKET
36	WCI F136777-000
37	WCI F136776-000
38	WCI F130220000
39	WCI F130228-200
40	WCI F134266-100
41	CLIP, HARNESS TO RH SIDE PANEL (3)
42	WCI F077094-000
44	CLIP (11)
45	WCI F131735-000
