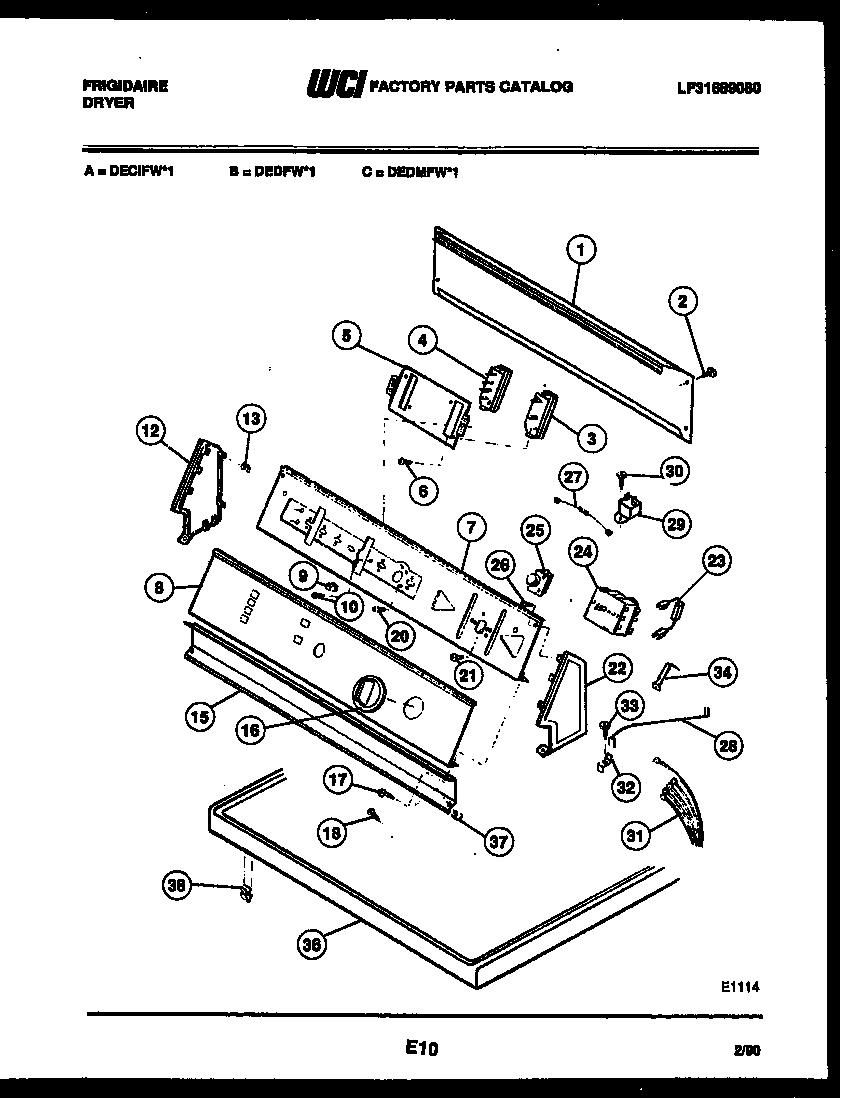

DECIFW1 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201322
2	5303015671 Frigidaire Bracket Termination Screw
3	WCI 08010818
4	SWITCH PUSHBUTTON (4)
5	WCI 3201324
7	WCI 3201325
8	WCI 3201327
9	BUTTON PUSHBUTTON SWITCH
10	SCREW (3)
12	END CAP RH
13	WCI 08014350
15	WCI 3205875
16	TIMER KNOB AND INDICATOR ASSEMBLY
17	WCI 08010782
18	WCI 3205820
20	WCI 08001544
21	SCREW (2)
22	WCI 3205876
23	RESISTOR
24	WCI 3201674
25	PUSH TO START SWITCH
26	SCREW (2)
28	WCI 3201385
29	WCI 08004087
30	WCI 08010804
31	WCI 3206292
31A	5303303590 Frigidaire Dryer 4.0" Cable Tie
32	WCI F079171-000
33	131243800 Frigidaire Screw
34	WCI 08014349
36	PANEL TOP-WHITE
37	WCI 3281192
38	3205821 Frigidaire Clip
