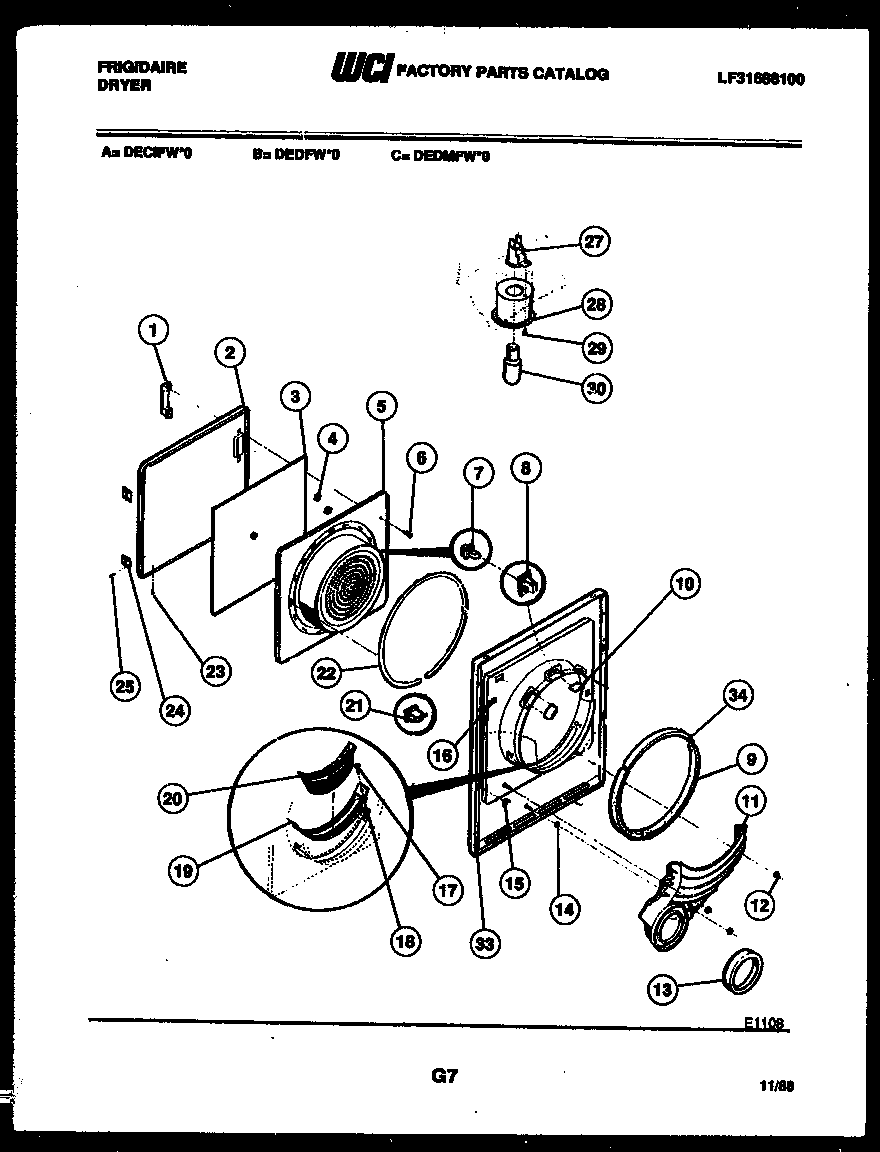

DEDFH0 03 – DOOR PARTS

DEDFH0 03 – DOOR PARTS

Written by

in

DEDFH0 03 – DOOR PARTS

Products

PositionProduct
1WCI 3281053
2DOOR-OUTER-WHEAT
3HEAT SHIELD
4WCI 3201205
4SPACER (2)
5DOOR-INNER-WHEAT
6WCI 3281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9SEAL
105303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
11WCI 08015173
12WCI 3281089
13134417000 Frigidaire Seal
145300809968 Frigidaire Dishwasher P-1 Washer
15CLIP-GUIDE (4)
16CLIP (4)
17131420300 Frigidaire Screw
18CLIP (2)
19WCI 3281060
20TRAP-LINT
21WCI 3281044
22WCI 3201210
24DOOR HINGE (2)
25SCREW (8)
33PANEL-FRONT-WHEAT
34WCI 3201264
