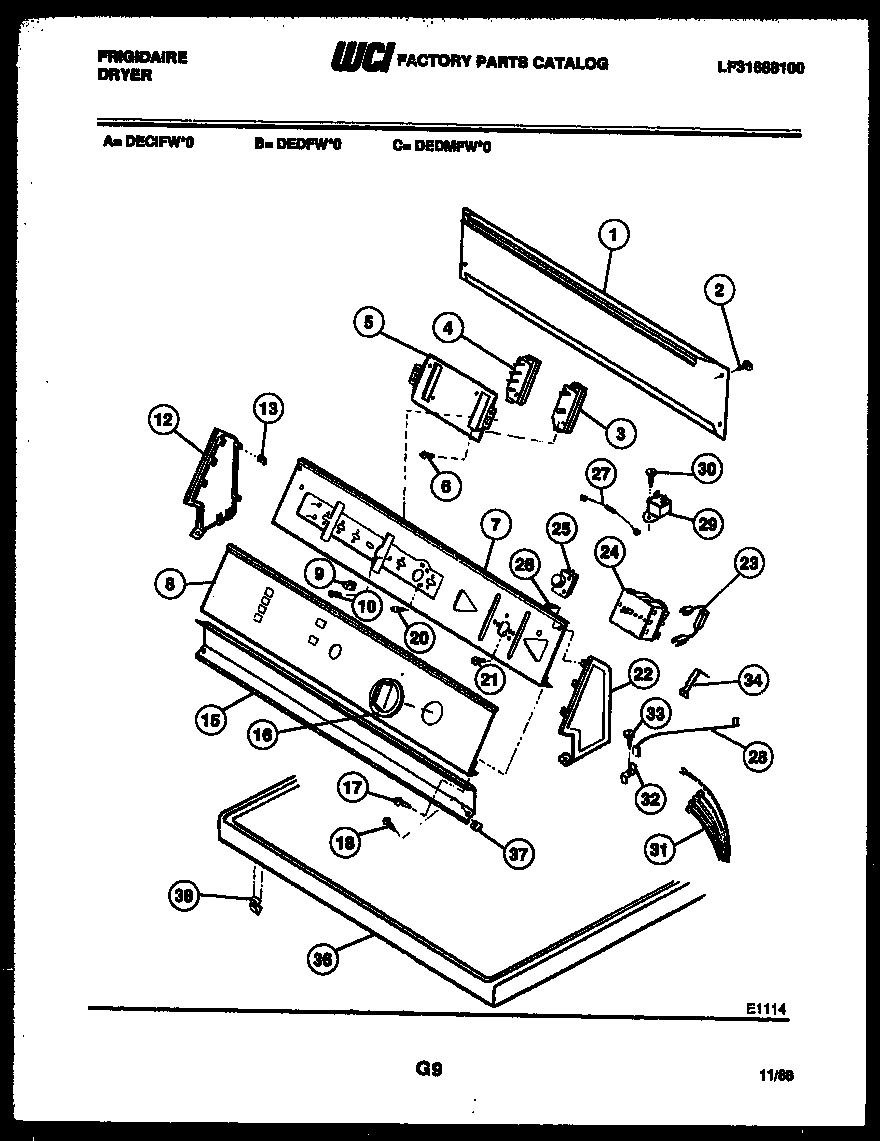

DEDMFL0 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201322
2	5303015671 Frigidaire Bracket Termination Screw
7	WCI 3201326
8	WCI 3201329
12	WCI 8010783
13	WCI 08014350
15	WCI 3201334
16	TIMER KNOB AND INDICATOR ASSEMBLY
17	WCI 08010782
18	WCI 08011318
20	WCI 08001544
21	WCI 08006636
22	WCI 08010787
23	RESISTOR
24	WCI 3201382
25	WCI 1132293
26	SCREW (2)
27	WCI 3201384
28	WCI 3201385
31	WCI 3201387
31A	5303303590 Frigidaire Dryer 4.0" Cable Tie
32	WCI 08002341
33	131243800 Frigidaire Screw
34	WCI 08014349
36	PANEL TOP-ALMOND
37	WCI 08001912
38	SPRING CATCH
