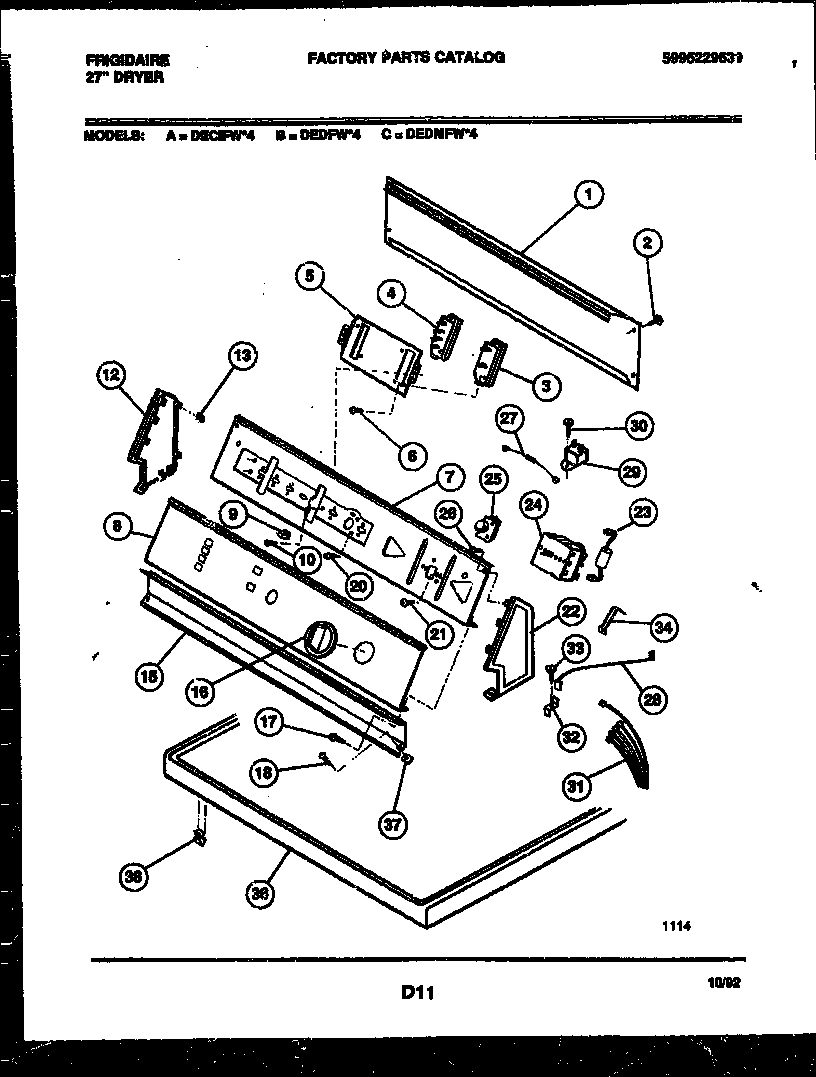

DEDMFL4 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201322
2	5303015671 Frigidaire Bracket Termination Screw
7	WCI 131013200
8	WCI 3201329
12	END CAP RH
13	WCI 08014350
15	WCI 3206253
16	WCI 5303292157
17	WCI 08010782
18	WCI 3205820
20	WCI 08001544
21	218359202 Frigidaire Refrigerator Screw
22	WCI 3205876
23	RESISTOR
24	131062300 Frigidaire Timer
25	WCI 5303212833
26	SCREW (2)
27	RESISTOR, 3.0K
28	WCI 3201385
29	WCI 5303210285
31	WCI 131007000
31A	5303303590 Frigidaire Dryer 4.0" Cable Tie
32	WCI 5379171000
33	131243800 Frigidaire Screw
34	WCI 08014349
36	PANEL TOP-ALMOND
37	WCI 3281192
38	3205821 Frigidaire Clip
