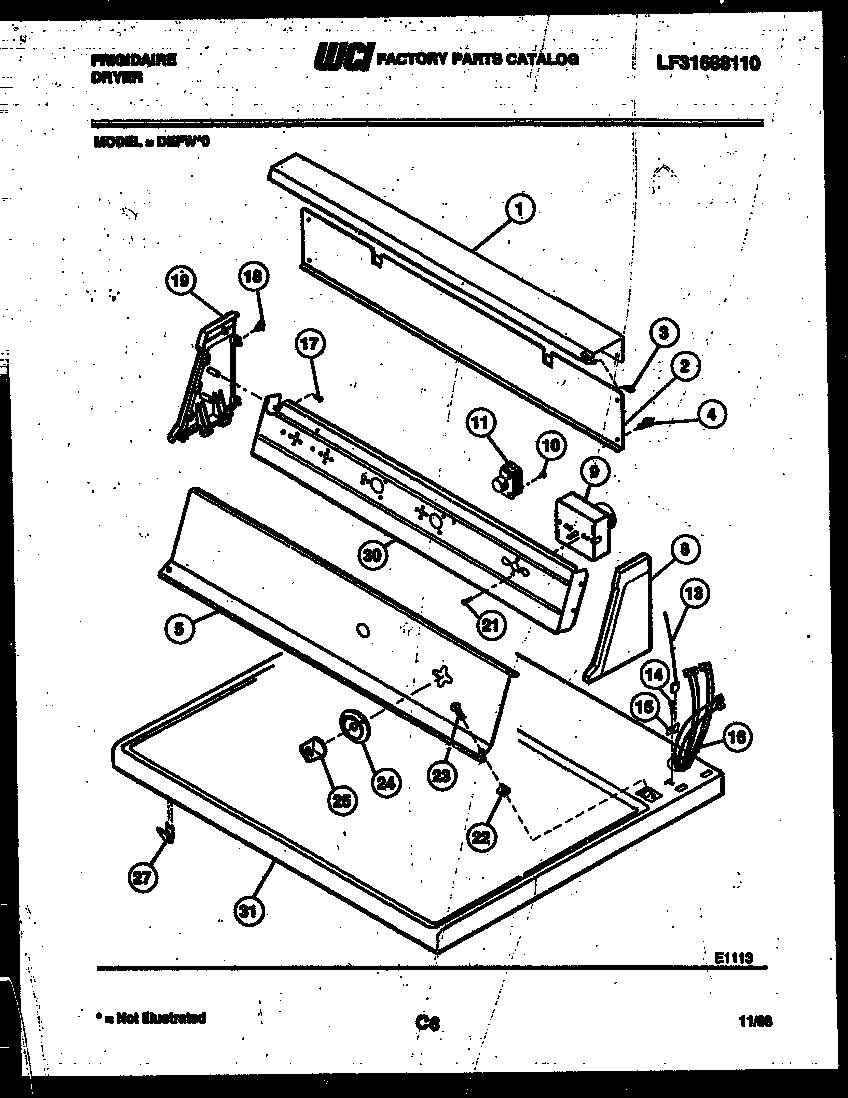

DEFW0 04 – CONSOLE AND CONTROL PARTS

DEFW0 04 – CONSOLE AND CONTROL PARTS

Written by

in

DEFW0 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-TOP
2WCI 3201349
3WCI 08010825
45303015671 Frigidaire Bracket Termination Screw
5WCI 3201350
8WCI 08010827
9WCI 3201351
10WCI 08010804
11WCI 1132293
13WCI 3201385
14131243800 Frigidaire Screw
15WCI 08002341
16WCI 3201389
16A5303303590 Frigidaire Dryer 4.0" Cable Tie
17131205100 Frigidaire Screw
18WCI 08010830
19END TRIM AND CAP ASSY RH
21WCI 08006636
22WCI 08001912
23WCI 08011318
24WCI 08015702
25KNOB TIMER
27SPRING CATCH
30BRACKET-CONTROL
31PANEL-TOP-WHITE
