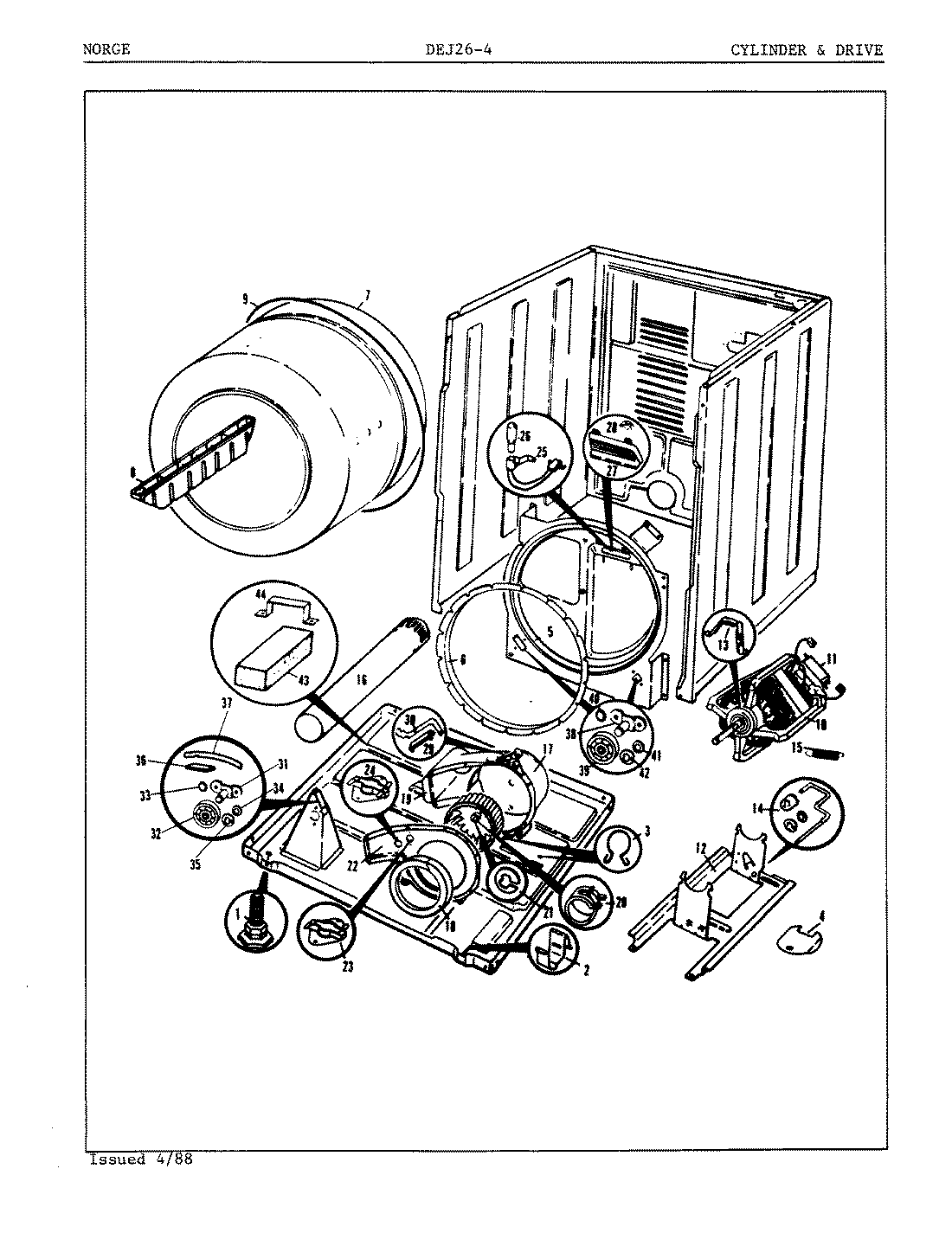

DEJ264A 02 – CYLINDER & DRIVE (REV.A-C)

Products

Position	Product
1	W11117769 Whirlpool Refrigerator Leveler
2	WP53-0120 Whirlpool Clip
3	MAY 25-7027
4	MAY 25-7741
4	MAY 53-0153
5	MAY 25-7733
5	MAY 53-0131
6	MAY 53-0282
7	MAY 53-0178
8	MAY 25-7759
8	MAY 53-0117
9	MAY 53-0186
10	MAY 53-1042
11	MAY 73-0467
11	MAY 53-0332
12	MAY 25-7811
12	MAY 53-0852
13	WP660658 Whirlpool Clamp
13	MAY 25-7674
14	MAY 53-0764
15	MAY 53-0207
16	MAY 53-0134
17	MAY 53-0774
18	MAY 53-0705
18	12001324 Whirlpool Collector Duct
19	MAY 53-0106
20	MAY 25-7823
21	MAY 25-7855
22	MAY 53-1024
22	MAY 53-0752
22	MAY 25-7807
22	MAY 53-1026
23	MAY 53-0263
24	MAY 53-0262
24	MAY 25-2134
28	LA-1006 Whirlpool Dryer Right Hand Glide Kit
29	MAY 53-0182
30	MAY 53-0183
31	MAY 53-0198
32	12002126 Whirlpool Refrigerator Reinforcement Brace Glide
35	MAY 25-7574
36	MAY 53-0723
37	MAY 53-0185
37	MAY LA-1008
38	WP53-0197 Whirlpool Support Bracket
38	WP3351614 Whirlpool Screw
39	MAY 53-0642
40	MAY 25-7813
41	MAY 25-7814
42	WP25-7854 Whirlpool Clip
44	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
