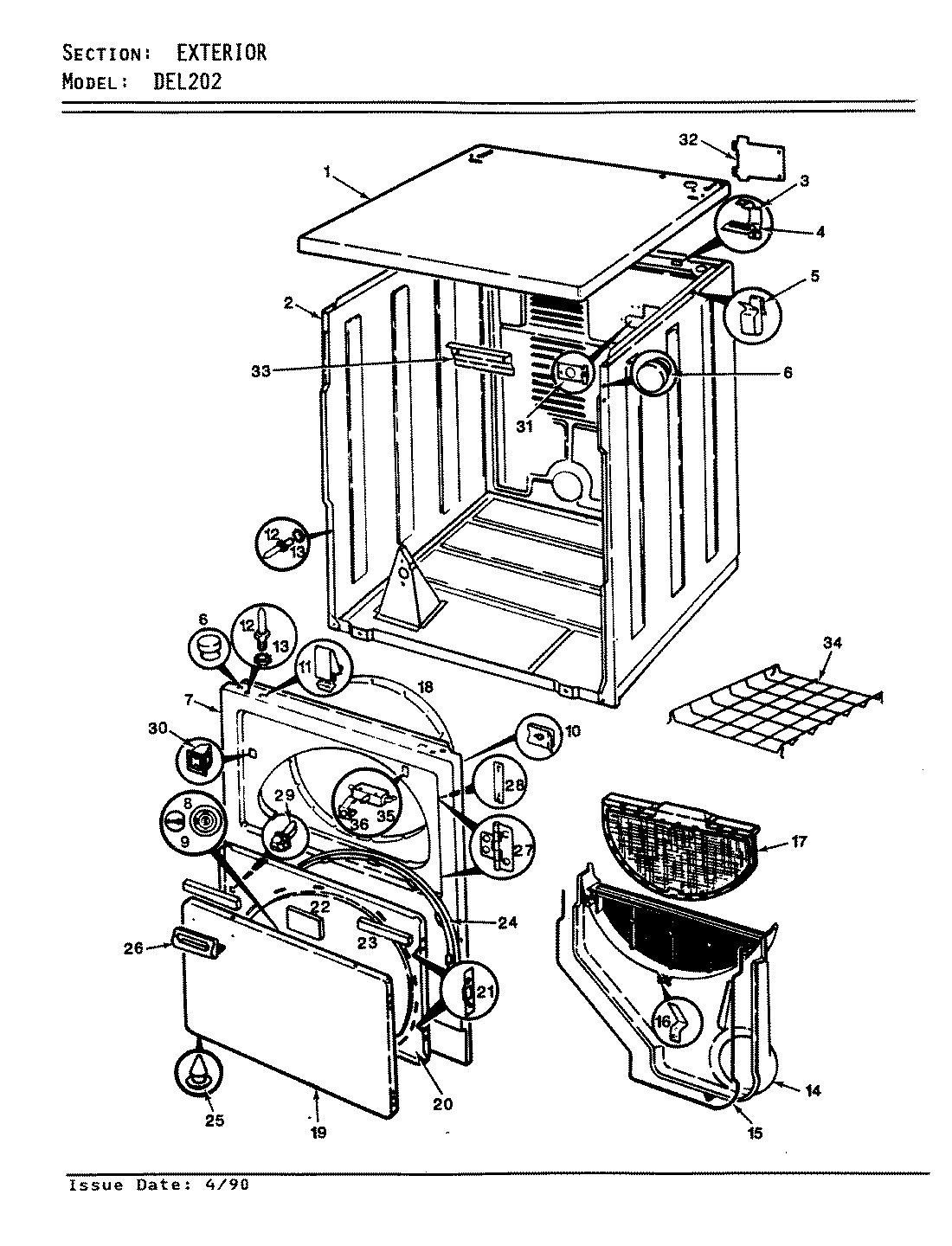

DEL202W 03 – EXTERIOR (REV. A-C)

Products

Position	Product
1	MAY 53-0314
2	WP53-0120 Whirlpool Clip
3	MAY 25-7027
4	MAY 25-7741
4	MAY 53-0153
5	MAY 25-7733
5	MAY 53-0131
6	MAY 53-0282
7	MAY 53-0178
8	MAY 25-7759
8	MAY 53-0117
9	MAY 53-1080
9	MAY LA-1004
10	MAY 53-0189
11	MAY 53-0936
12	MAY 53-0105
12	MAY 25-7811
13	WP660658 Whirlpool Clamp
13	MAY 25-7674
14	MAY 53-0199
15	MAY 53-0207
16	MAY 53-0134
17	MAY 53-0774
18	MAY 53-1102
18	12001324 Whirlpool Collector Duct
19	MAY 53-0106
20	MAY 25-7823
21	MAY 25-7812
22	MAY 25-3457
22	MAY 25-7807
22	MAY 53-1023
22	MAY 53-1026
23	WP53-1107 Whirlpool Thermostat
24	MAY 25-2134
28	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
28	LA-1006 Whirlpool Dryer Right Hand Glide Kit
29	MAY 53-0182
30	12002126 Whirlpool Refrigerator Reinforcement Brace Glide
30	MAY 53-0183
31	WP3351614 Whirlpool Screw
42	MAY 25-7574
