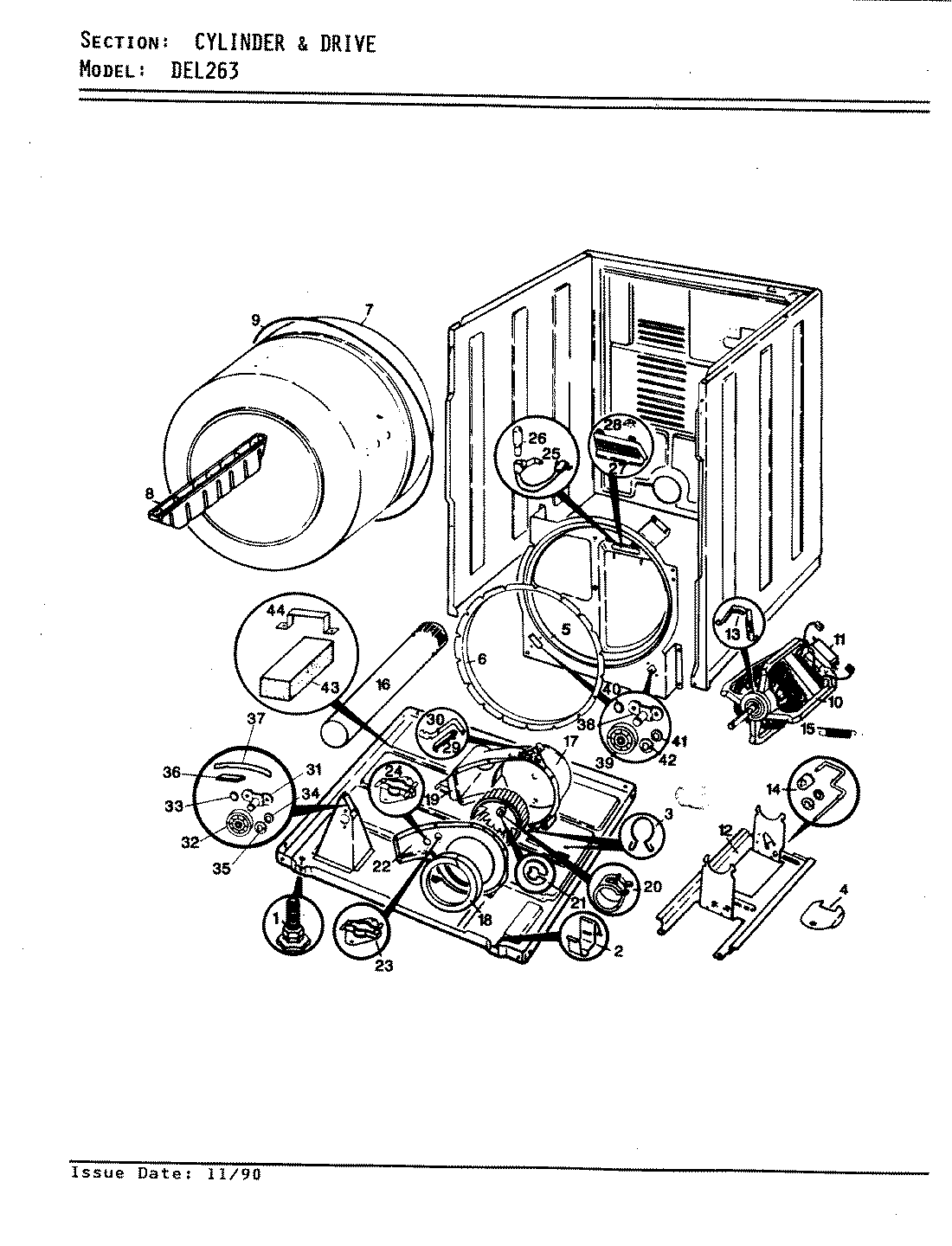

DEL263H 03 – CYLINDER & DRIVE (REV.A-D)

Products

Position	Product
NI	MAY 63-5577
1	W11117769 Whirlpool Refrigerator Leveler
2	WP53-0120 Whirlpool Clip
3	MAY 25-7027
4	MAY 53-0153
4	MAY 25-7741
5	SCREW
5	MAY 53-0131
6	MAY 53-0282
7	MAY 53-0178
8	MAY 53-0117
8	MAY 25-7759
9	MAY 53-1080
10	MAY 53-1042
11	MAY 53-0693
12	MAY 25-7811
12	MAY 53-0852
13	MAY 25-7674
13	WP660658 Whirlpool Clamp
14	MAY 53-1650
14	MAY 53-0764
14	MAY 53-1628
15	MAY 53-0207
15	MAY 53-1548
16	MAY 53-0134
17	MAY 53-0774
18	12001324 Whirlpool Collector Duct
19	MAY 53-0106
20	MAY 25-7823
21	MAY 25-7855
22	MAY 53-1024
22	MAY 25-7807
22	MAY 53-1026
22	MAY 25-3457
23	WP53-1107 Whirlpool Thermostat
24	MAY 53-0170
24	MAY 25-2134
28	LA-1006 Whirlpool Dryer Right Hand Glide Kit
29	MAY 53-0182
30	MAY 53-0183
32	12002126 Whirlpool Refrigerator Reinforcement Brace Glide
36	MAY 53-0723
37	MAY LA-1008
37	MAY 53-0185
38	WP3351614 Whirlpool Screw
38	MAY 53-0198
39	MAY 53-0642
40	MAY 25-7813
41	MAY 25-7814
42	WP25-7854 Whirlpool Clip
44	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
45	MAY 53-1452
45	MAY 53-1452-1
