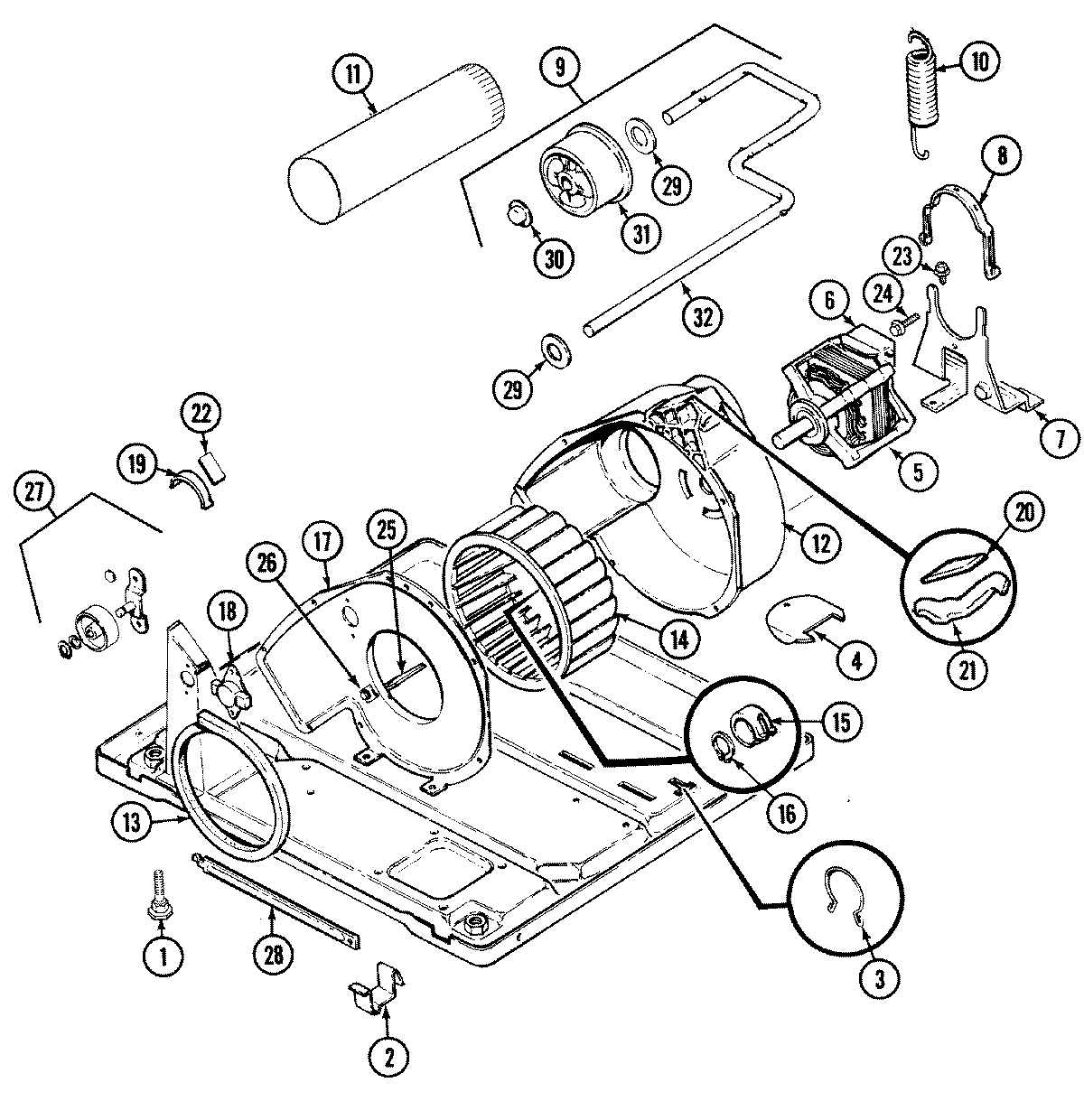

DEM205A 09 – MOTOR & DRIVE (REV. E)(ALM)

DEM205A 09 – MOTOR & DRIVE (REV. E)(ALM)

Written by

in

DEM205A 09 – MOTOR & DRIVE (REV. E)(ALM)

Products

PositionProduct
1W11117769 Whirlpool Refrigerator Leveler
2WP53-0120 Whirlpool Clip
3MAY 25-7027
4MAY 25-7741
4MAY 53-0153
5MAY 53-1589
5MAY 53-2275
6MAY 53-0693
7MAY 25-7811
7MAY 53-1932
8WP660658 Whirlpool Clamp
1031001465 Whirlpool Idler Spring
11MAY 53-0134
12MAY 53-1801
13MAY 53-0204
14MAY 53-0106
15MAY 25-7823
16MAY 25-7855
17MAY 53-1933
17MAY 25-7807
18MAY 53-0170
18MAY 25-2134
18WP53-1107 Whirlpool Thermostat
19LA-1006 Whirlpool Dryer Right Hand Glide Kit
19MAY 53-0185
20WP31001356 Whirlpool Glide Pad
21MAY 53-0183
22MAY LA-1008
22MAY 53-1684
23MAY 25-7699
24MAY 25-7674
25MAY 53-1026
26MAY 25-3457
2712002126 Whirlpool Refrigerator Reinforcement Brace Glide
28MAY LA-2010
29MAY 25-7815
30MAY 25-7957
31MAY 53-1628
32WP53-2287 Whirlpool Idler Assembly
