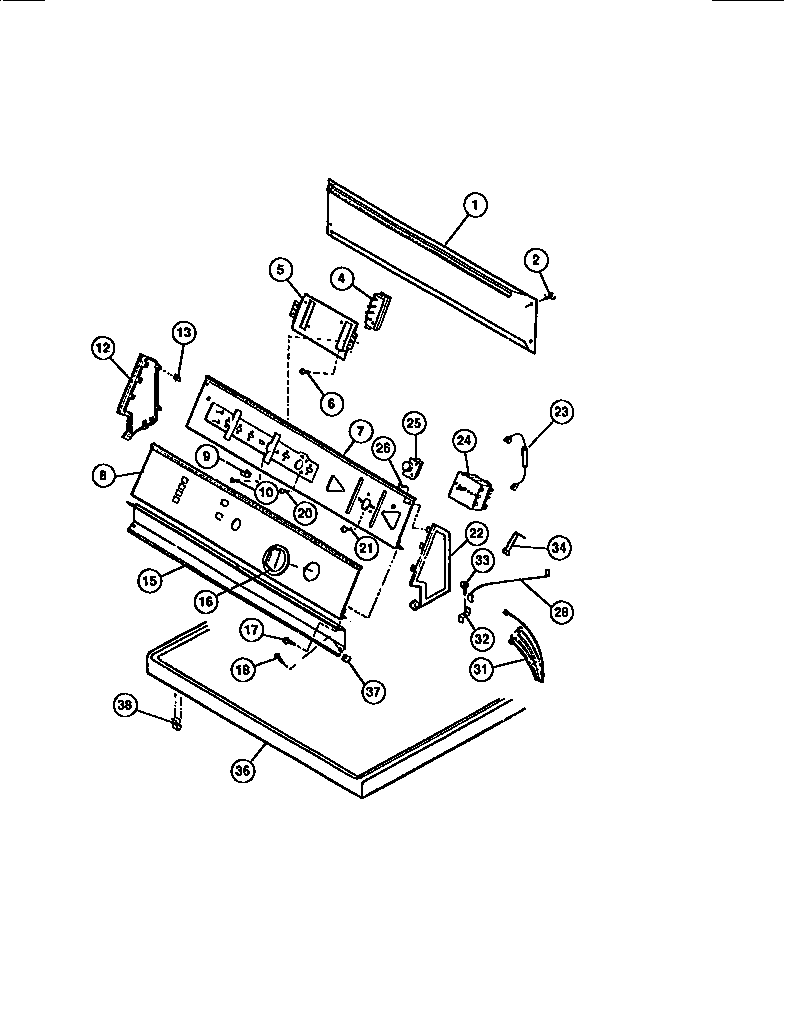

DESFL2 04 – CONSOLE, CONTROLS, TOP PANEL

Products

Position	Product
1	WCI 3201322
2	5303015671 Frigidaire Bracket Termination Screw
7	WCI 3201326
8	WCI 3201332
12	END CAP RH
13	WCI 08014350
15	WCI 3205875
16	TIMER KNOB AND INDICATOR ASSEMBLY
17	WCI 08010782
18	WCI 3205820
20	WCI 08001544
21	SCREW (2)
22	WCI 3205876
24	WCI 3201338
25	WCI 5303212833
26	SCREW (2)
28	WCI 3201385
31	WCI 5303270870
31A	5303303590 Frigidaire Dryer 4.0" Cable Tie
32	WCI 5379171000
33	131243800 Frigidaire Screw
34	WCI 08014349
36	PANEL TOP-ALMOND
37	WCI 3281192
38	3205821 Frigidaire Clip
