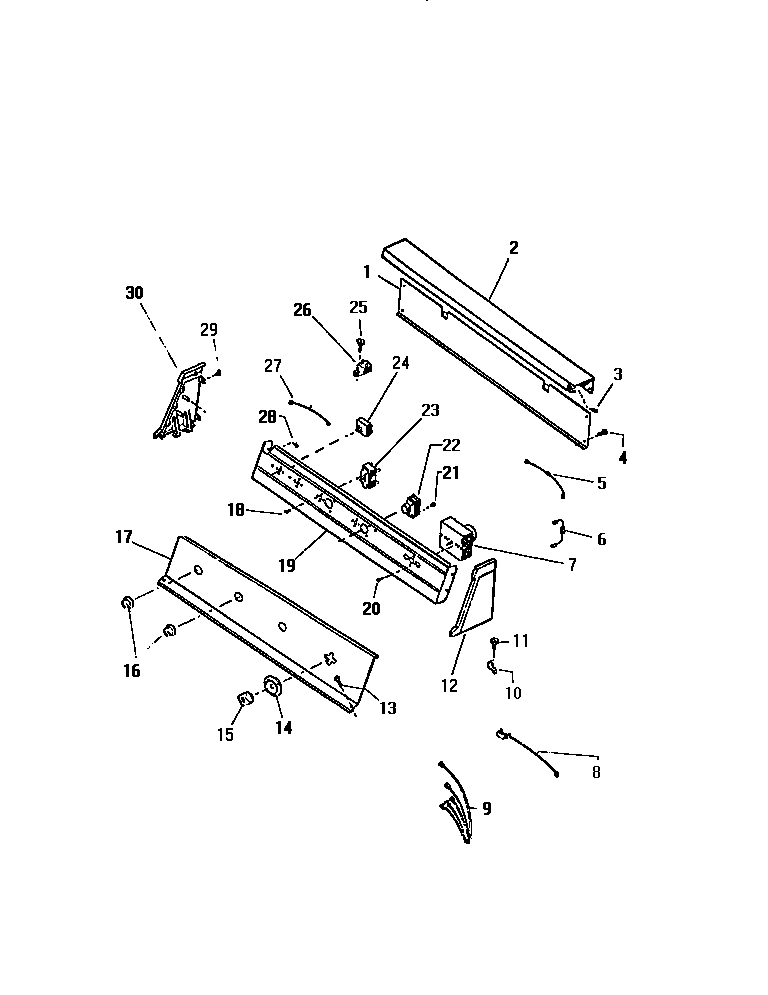

DET400A0D 02 – CONSOLE & CONTROLS

Products

Position	Product
*41840	CLIP HARNESS TO RH CAB (2)
*41845	WCI F136345-000
*41846	WCI F063124-000
*41841	TIE-HARN TOP PNL (NON-ILLUSTRATED)
*41842	5304464772 Frigidaire Refrigerator Wire Tie
*41843	5303015671 Frigidaire Bracket Termination Screw
1	WCI F139230-026
2	WCI F139795-000
3	WCI F139635-000
7	WCI F137252-000
7A	WCI F079459-022
8	WCI F139816-000
9	WCI F140151-000
10	WCI F079171-000
11	131243800 Frigidaire Screw
12	WCI F139719-000
13	WCI F140203-000
14	WCI F078951-000
15	WCI F078950-100
17	WCI F139938-100
19	WCI F140183-022
20	WCI F060796-000
21	SEMS SCREW (2)
22	PUSH TO START SWITCH
28	131205100 Frigidaire Screw
29	WCI F139577-000
30	WCI F139719-100
