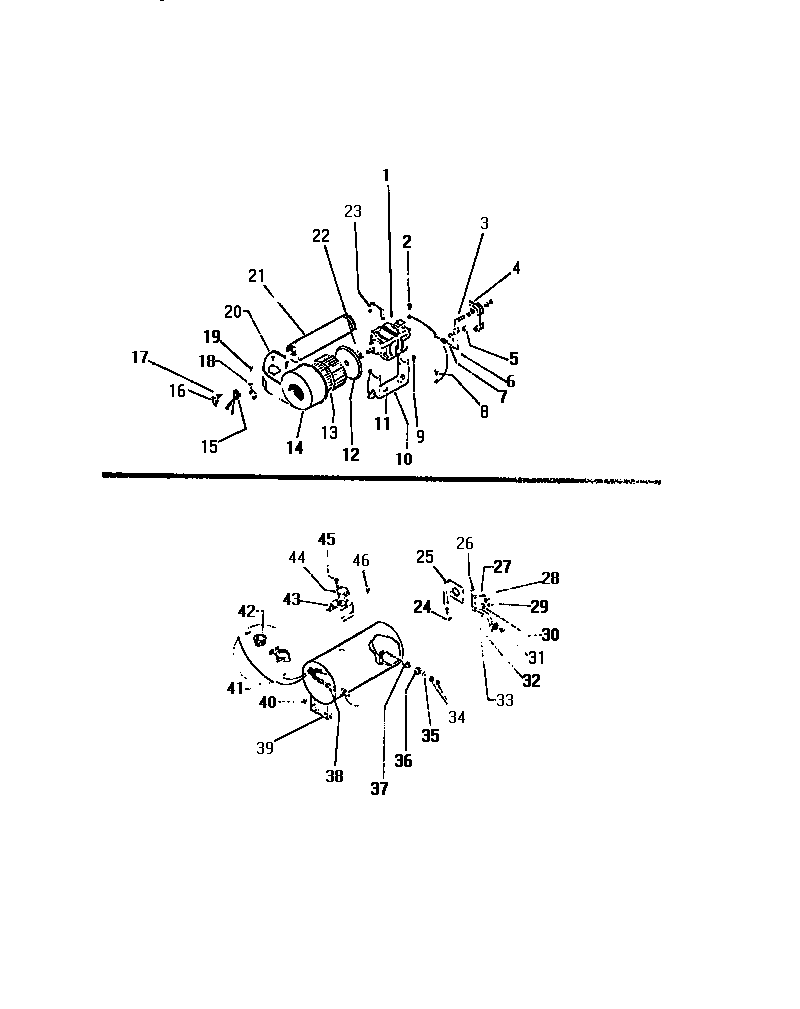

DET400A1D 05 – BLOWER & HEATER HOUSING COMPONENTS

Products

Position	Product
*42686	COMPLETE HTR ASSEMBLY
*42684	WCI F133285-000
*42688	GROUND WIRE, ELECTRIC
*42687	GROUND WIRE, GAS
1C	MOTOR SWITCH (EMERSON)
1A	WCI F137079-000
1	WCI F137078-000
1B	MOTOR SWITCH (GE)
2	WCI F132144-000
3	IDLER WHEEL ASSEMBLY (IDLER BAR ASSEMBLY WHEEL AND WASHE
4	BELT
5	WCI F079485-000
6	WCI F076822-000
7	WCI F131652-000
9	SEMS SCREW
10	WCI F078190-026
12	WCI F064354-028
13	WCI F076829-000
14	WCI F078201-100
15	WCI F136777-000
15	EXTERNAL THERMO HTR (GAS)
16	THERMO-CONT (ELECTRIC MODELS ONLY)
18	BRACKET
21	EXHAUST PIPE ASSEMBLY
22	WCI F064360-000
23	MOTOR CLIP (2)
25	WCI F063536-026
26	5304409888 Frigidaire Oven Terminal Block with Hardware
27	SCREW (6)
29	NUT (4)
30	WCI F073323-000
31	134154100 Frigidaire Screw 10-32 x 0.375 Co
32	WCI F078101-000
33	WCI F076793-100
34	NUT (2)
35	WASHER (2)
36	INSULATOR, FEMALE (2)
37	INSULATOR, MALE (2)
38	HEAT ELEMENT PKG (PACKAGE CONTAINS ELEMENT, INSULATORS,
39	HTR. HOUSING
41	CLIP (11)
42	WCI F131735-000
43	WCI F076956-000
44	WCI F132202-000
45	5303015671 Frigidaire Bracket Termination Screw
