DF12J 03 – UNIT COMPARTMENT & SYSTEM
Written by
in

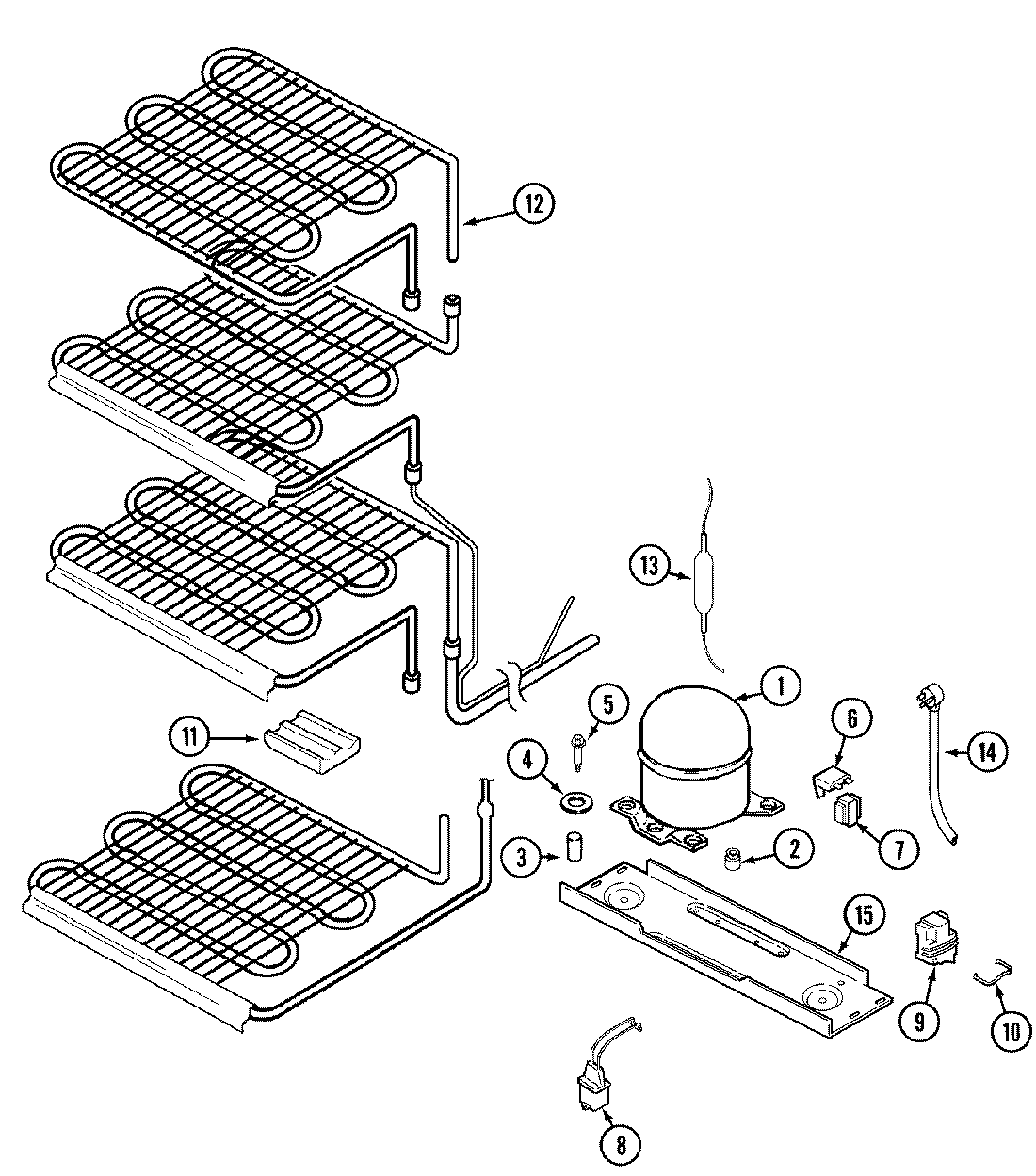

DF12J 03 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
NI
MAY Y04933101
1
W10309989 Whirlpool Refrigerator Compressor
1
MAY 68001285
1
MAY 12001591
1
MAY 68001289
1
MAY 68001292
2
MAY Y09100025
3
4356846 Whirlpool Refrigerator Sleeve
4
MAY 005417-03
5
MAY 68001190
5
MAY Y04703209
6
4318083 Whirlpool Air Conditioner Start Relay
6
MAY 68001202
6
MAY Y09100133
6
MAY 68001364
7
MAY Y09100134
7
2183409 Whirlpool Refrigerator Overload
7
WP4344040 Whirlpool Refrigerator Overload
7
MAY 68001293
8
MAY Y09100136
8
MAY 68001212
8
MAY 68001204
8
WPW10662129 Whirlpool Refrigerator Run Capacitor
9
MAY 68001373
9
MAY 68001213
9
MAY 68001205
9
MAY Y09100115
10
MAY Y09100116
10
MAY 68001374
11
1-80308-101 Whirlpool Refrigerator Bulb Clamp
12
MAY 68001291
12
MAY 68001286
12
MAY Y04637401
12
MAY 68001360
13
WPW10143759 Whirlpool Dryer Filter
14
MAY 68001309
15
MAY 68001287
15
MAY 043037-01
←
