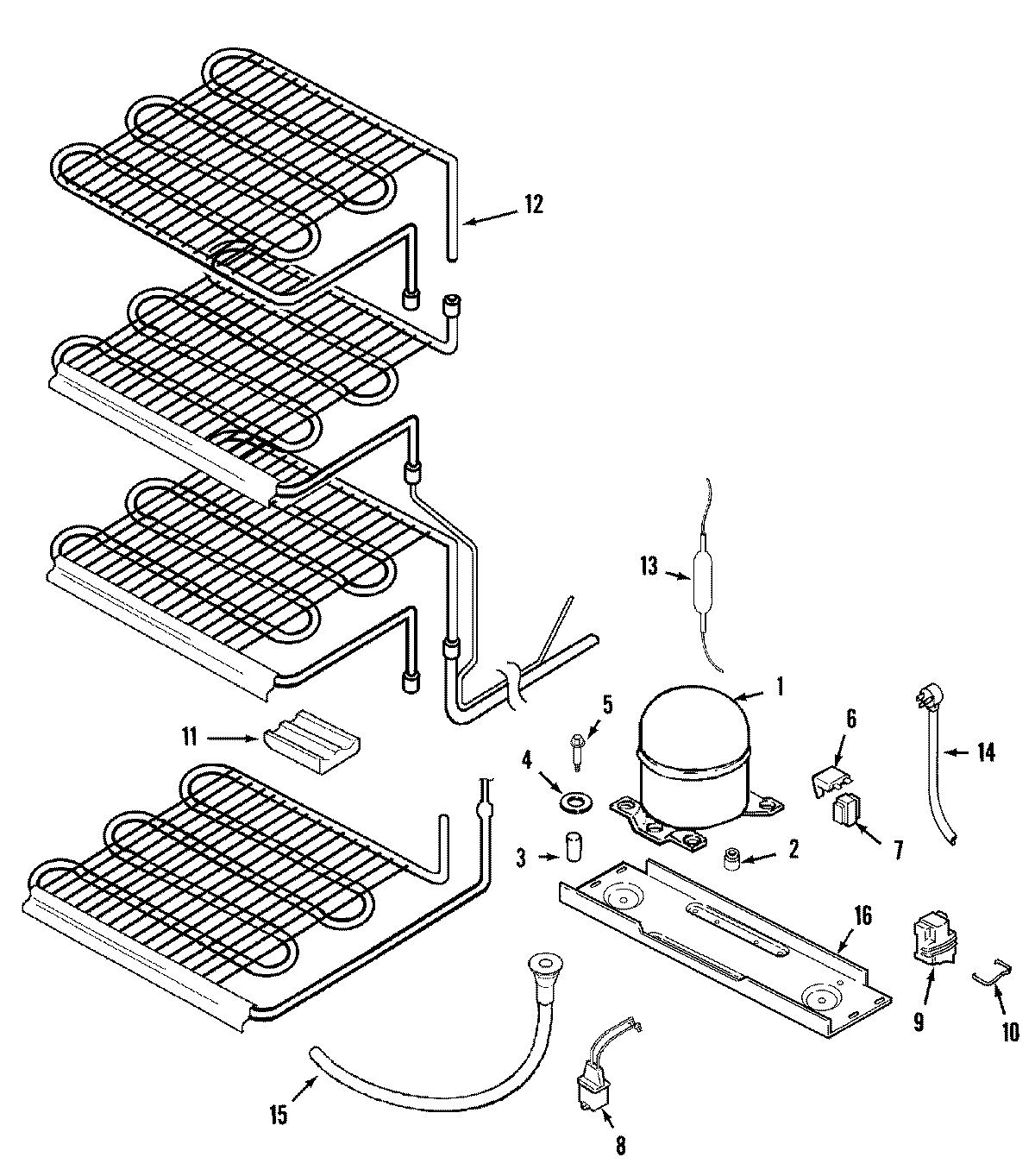

DF15J 03 – UNIT COMPARTMENT & SYSTEM
Written by
in
DF15J 03 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
NI
MAY Y04933101
1
KIT, COMPRESSOR (R134A)
1
MAY 68001189
1
MAY 12001591
1
MAY 68001191
1
W10309994 Whirlpool Refrigerator Compressor
1
W10309989 Whirlpool Refrigerator Compressor
2
MAY Y09100025
3
4356846 Whirlpool Refrigerator Sleeve
4
MAY 005417-03
5
MAY Y04703209
5
MAY 68001190
6
MAY 68001202
6
MAY 68001364
6
MAY Y09100133
6
4318083 Whirlpool Air Conditioner Start Relay
7
2183409 Whirlpool Refrigerator Overload
7
WP4344040 Whirlpool Refrigerator Overload
7
MAY 68001211
7
MAY Y09100146
7
MAY 68001208
8
MAY Y09100136
8
WPW10662129 Whirlpool Refrigerator Run Capacitor
8
MAY 68001212
8
MAY 68001204
9
MAY 68001373
9
MAY 68001205
9
MAY 68001213
9
MAY Y09100115
10
MAY Y09100116
10
MAY 68001374
11
1-80308-101 Whirlpool Refrigerator Bulb Clamp
12
MAY 68001314
12
MAY 68001136
12
MAY 68001188
12
MAY 68001297
13
WPW10143759 Whirlpool Dryer Filter
14
MAY 68001060
15
MAY 68001128
16
MAY 68001201
16
MAY 043037-01
←
