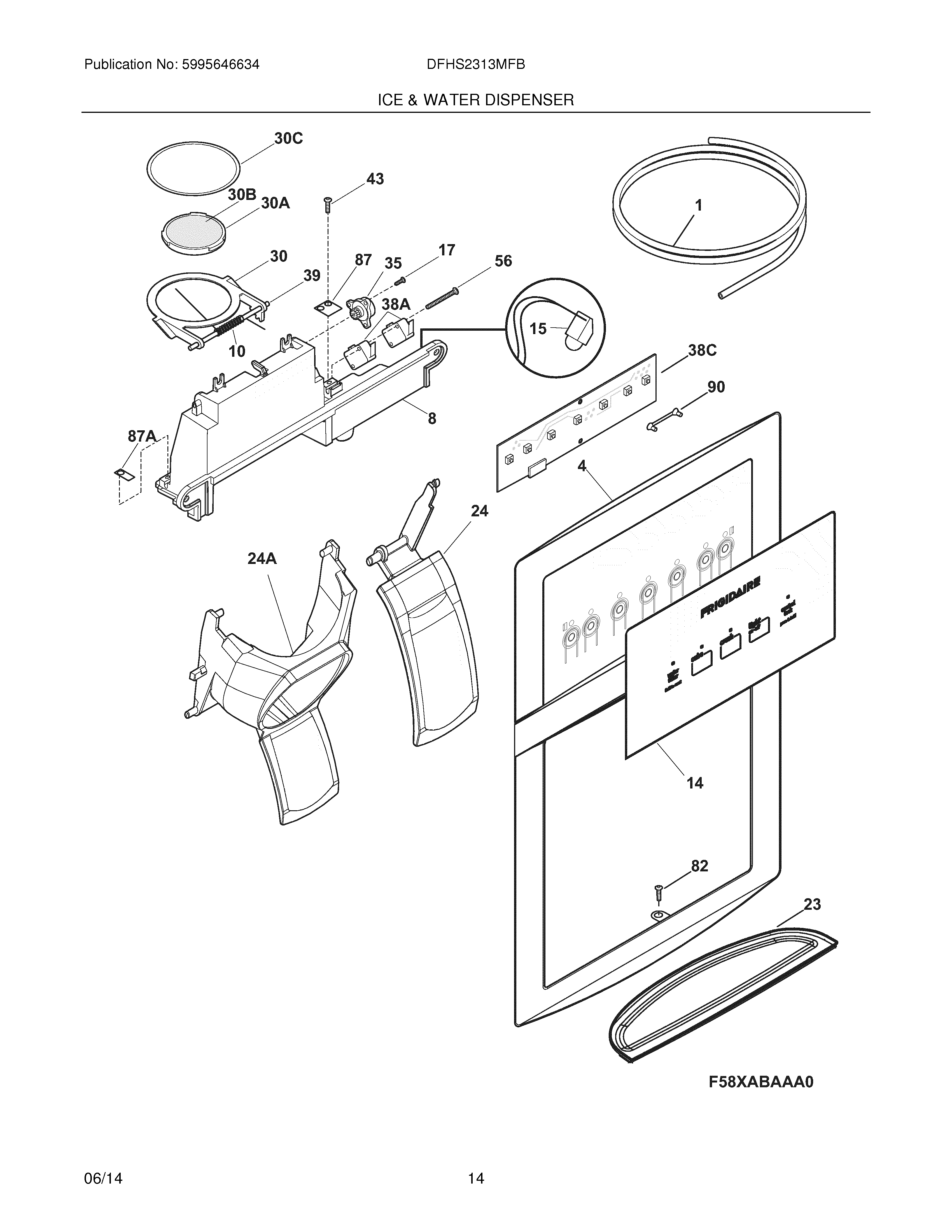

DFHS2313MFB 15 – ICE & WATER DISPENSER

Products

PositionProduct
NI242220206 Frigidaire Refrigerator Water Inlet Tube
NI218515403 Frigidaire Refrigerator Clip-Grille
NI218976439 Frigidaire Refrigerator Water Inlet Tube
NI241850615 Frigidaire Ice Maker Fill Tube Assembly
NI240561701 Frigidaire Refrigerator Seal
NI5304521768 Frigidaire Refrigerator Harness
1218976409 Frigidaire Refrigerator Water Tube
4808048105 Frigidaire Cover Assembly
8MODULE-DISPENSER
10241688901 Frigidaire Refrigerator Torsion Spring
14242083003 Frigidaire Refrigerator Module Cover Label
15242065203 Frigidaire Refrigerator Assembly Harness
17241679801 Frigidaire Screw
23241947003 Frigidaire Refrigerator Drip Tray
24ACTUATOR-WATER, BLACK
24A242083503 Frigidaire Refrigerator Actuator
30C241688701 Frigidaire Refrigerator Door Seal
30A241688501 Frigidaire Refrigerator Door Center
30241688401 Frigidaire Ice Door Bracket
30B241688601 Frigidaire Refrigerator Door Insulation
35241689301 Frigidaire Refrigerator Rotary Damper
38A241689104 Frigidaire Refrigerator Switch-Micro
38C242053503 Frigidaire Refrigerator Control Board
38C241953902 Frigidaire Refrigerator Screw
39241688801 Frigidaire Refrigerator Pin-Hinge
43WCI 215296301
56241689201 Frigidaire Refrigerator Screw-Micro Switch
825304453707 Frigidaire Oven Screw
87A241688301 Frigidaire Refrigerator Bearing Plate
87241688302 Frigidaire Refrigerator Bearing Plate
90241732703 Frigidaire Refrigerator Light Pipe
