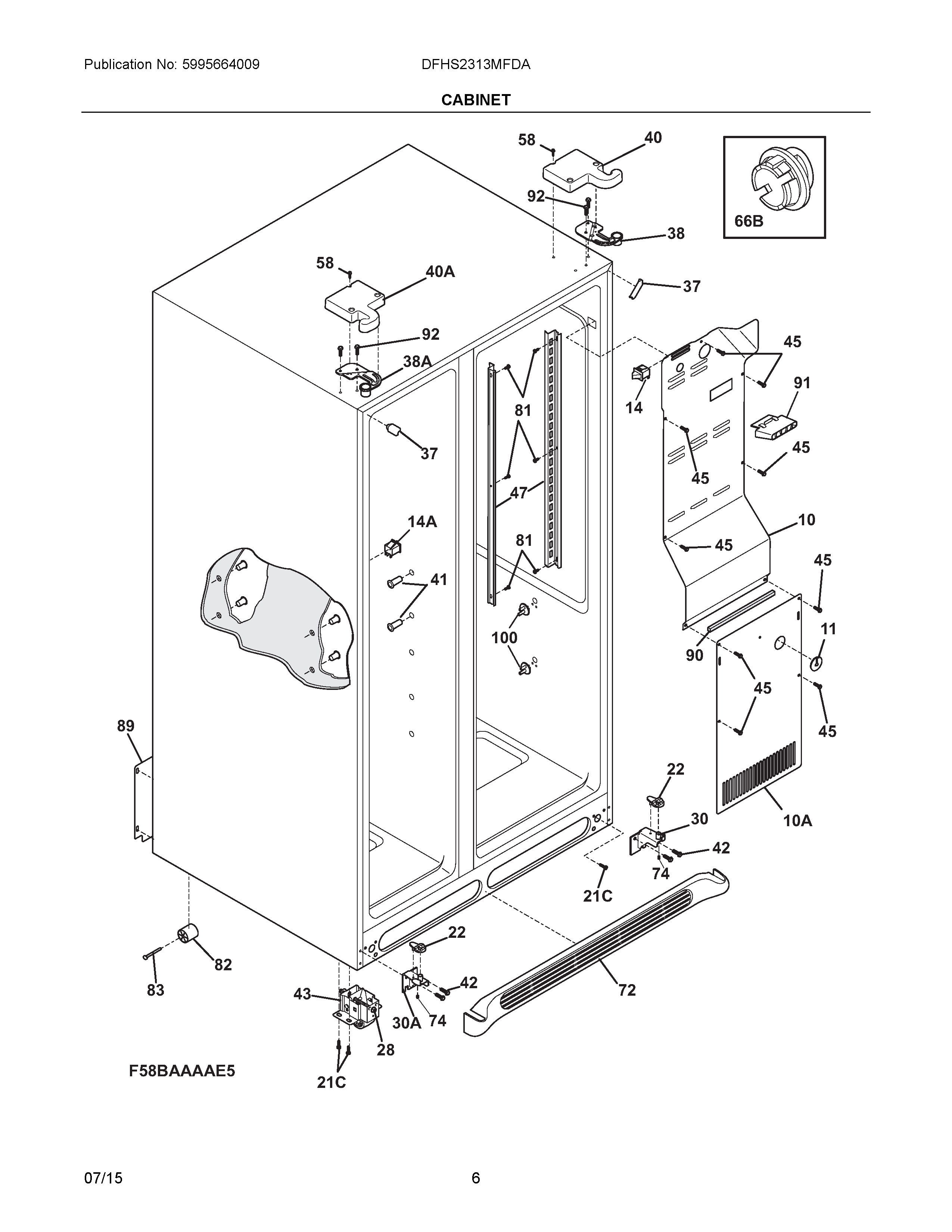

DFHS2313MFDA 04 – CABINET

DFHS2313MFDA 04 – CABINET

Written by

in

DFHS2313MFDA 04 – CABINET

Products

PositionProduct
NI240494001 Frigidaire Refrigerator Plug Button
NIA241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NIA241993001 Frigidaire Refrigerator Left Crisper Cover Support
NIBA240518802 Frigidaire Refrigerator Push Pin
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NICLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
10A241719710 Frigidaire Refrigerator Cover-Evaporator
10240435911 Frigidaire Refrigerator Cover
115303208309 Frigidaire Refrigerator Plug Hole
14A241547902 Frigidaire Refrigerator Light Switch
14240505801 Frigidaire Light Switch
21C218252201 Frigidaire Refrigerator Screw
22241917801 Frigidaire Refrigerator Closer Plate
30241918001 Frigidaire Lower Door Hinge
30A241918004 Frigidaire Lower Hinge Bracket
37242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38241761301 Frigidaire Upper Bracket Hinge
38A241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40241946715 Frigidaire Refrigerator Upper Hinge Cover
40A241946716 Frigidaire Refrigerator Upper Hinge Cover
41241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
435304499445 Frigidaire Refrigerator Roller Assembly
45241500303 Frigidaire Refrigerator Screw
47WCI 218659500
58218781101 Frigidaire Handle Screw
66BWCI 240374301
72241521603 Frigidaire Refrigerator Grill/Kickplate
74218755402 Frigidaire Refrigerator Set Screw
815304455650 Frigidaire Refrigerator Screw
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
89WCI 241733901
90218249808 Frigidaire Refrigerator Seal-Coil Cover
91240380101 Frigidaire Refrigerator Ice Maker Duct
92241710601 Frigidaire Refrigerator Screw
100CRISPER COVER SUPPORT
