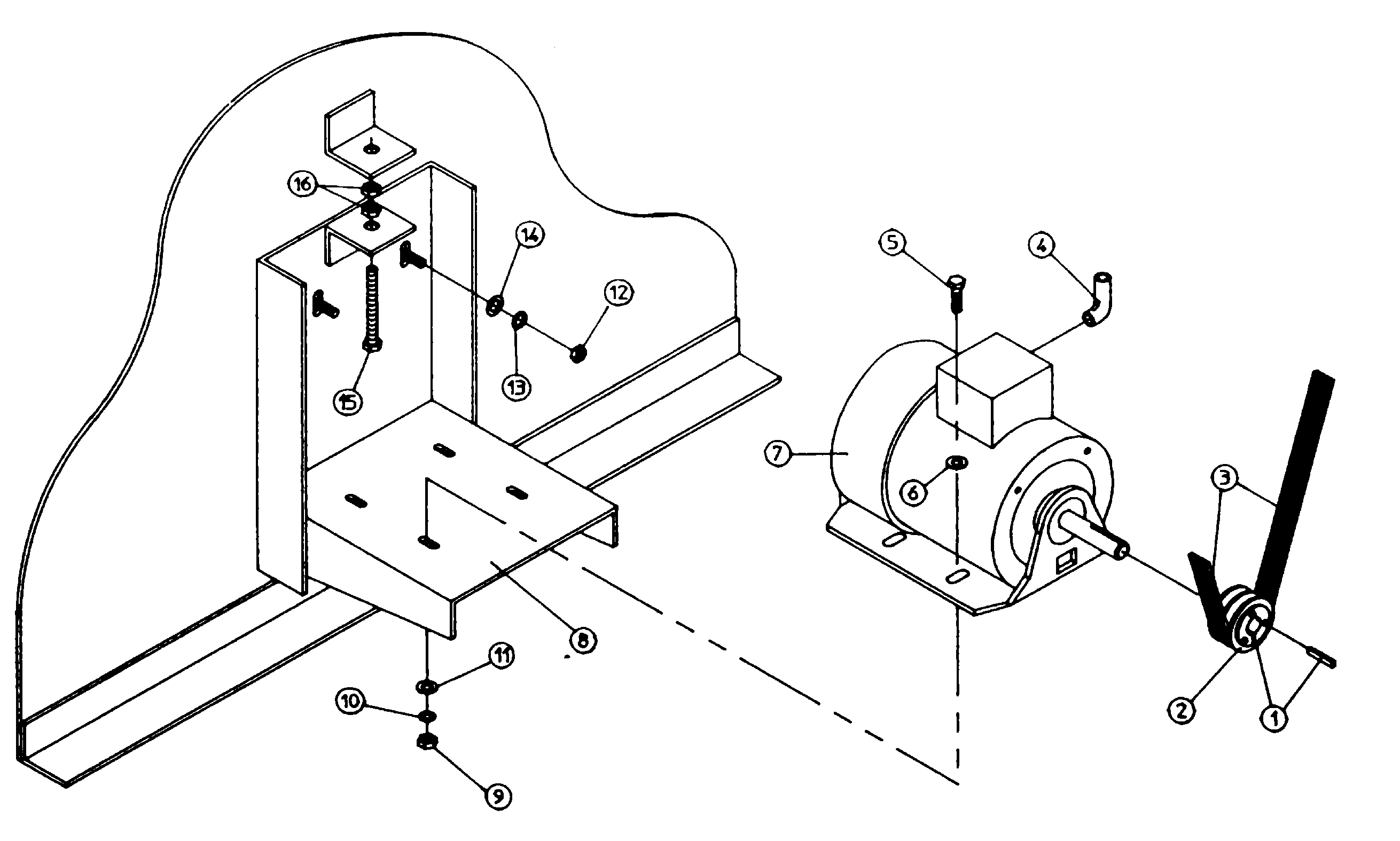

DG100PN1 17 – TUMBLER MOTOR MOUNT ASSEMBLY
Written by
in
DG100PN1 17 – TUMBLER MOTOR MOUNT ASSEMBLY
Products
| Position | Product |
|---|---|
| 001 | MAY A101121 |
| 002 | MAY A101114 |
| 003 | MAY A100102 |
| 004 | MAY A120200 |
| 005 | MAY A150513 |
| 007 | MAY A100029 |
| 007 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 008 | MAY A800952 |
| 008 | MAY A800953 |
| 012 | MAY A152004 |
| 013 | MAY A153002 |
| 014 | MAY A153001 |
| 015 | MAY A150619 |
| 016 | MAY A152005 |
