DG1030 21 – REAR FRAME AND FRAME BASE – Aparts

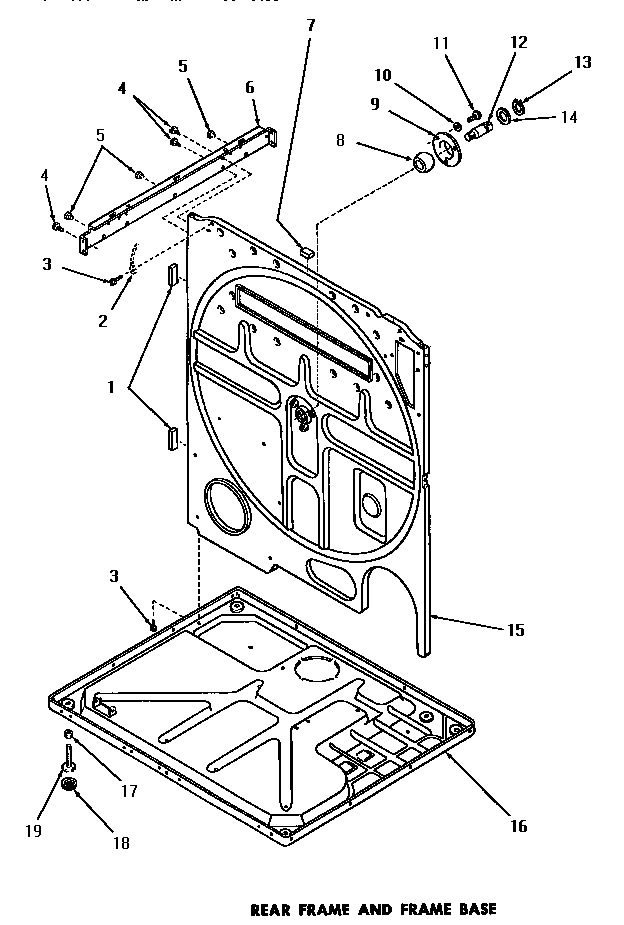

DG1030 21 – REAR FRAME AND FRAME BASE

Products

Position	Product
1	MAY 20354
2	SEE NOTE GROUND WIRE, GREEN
3	MAY 51784
4	MAY 51780
5	MAY 21685
6	MAY 51818
7	MAY Y0054053
8	MAY Y52079
9	MAY 51826
10	MAY 03189
11	MAY 53589
12	MAY 53132
13	MAY 70061
14	MAY Y52564
15	MAY 52574
16	MAY Y52572
17	MAY 52794
18	MAY 70282
19	MAY Y52696
