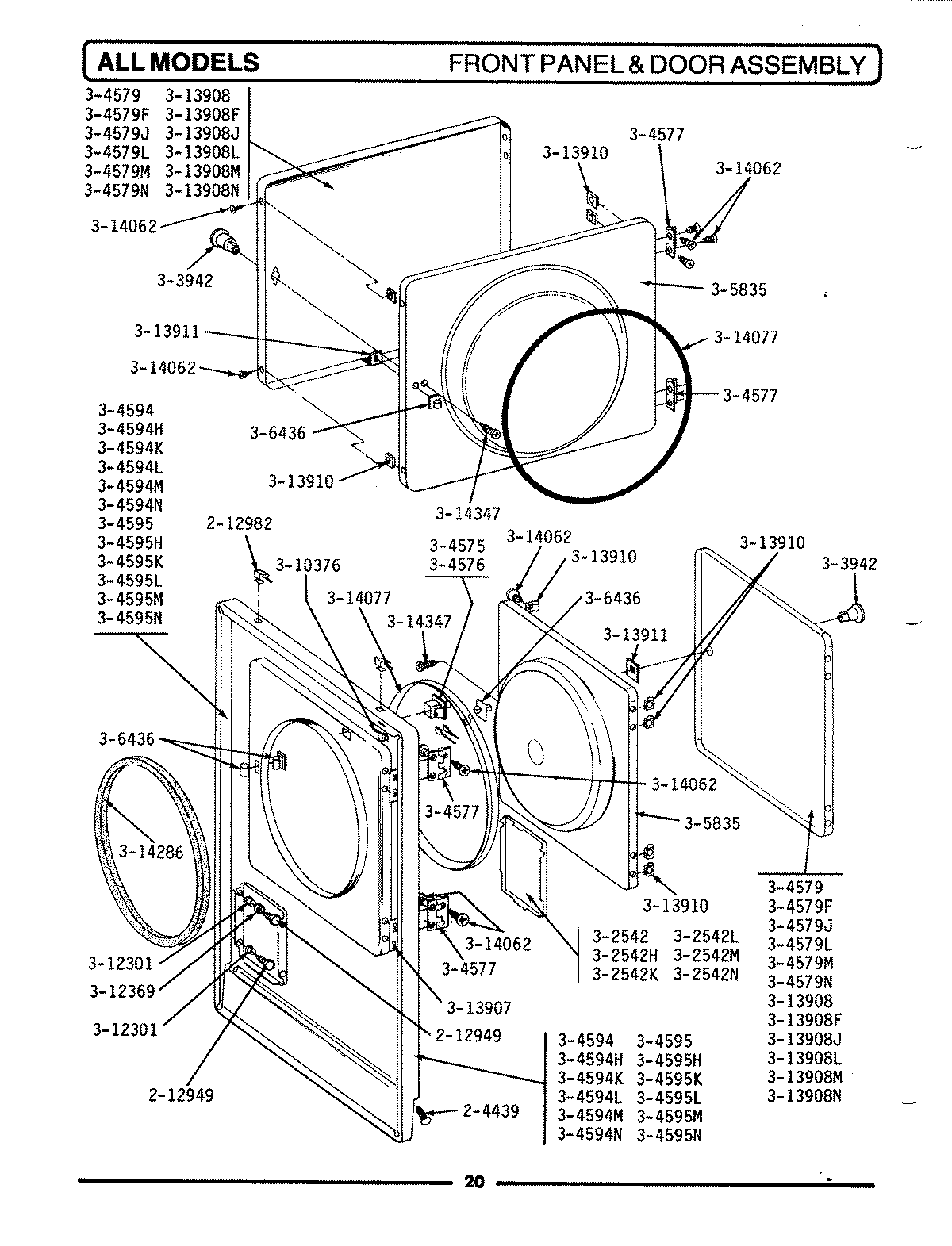

DG106 02 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
1	SCREW & FSTNER ASSY (FT. PNL)
2	SCREW, BUSHINGS
3	MAY 212982
4	MAY 302542
5	MAY 302542H
6	MAY 302542K
7	MAY 302542L
8	MAY 302542M
9	MAY 302542N
10	MAY 303942
11	MAY Y304577
12	MAY Y304579
13	MAY 304579F
14	MAY 304579J
15	MAY 304579L
16	MAY 304579M
17	MAY 304579N
18	MAY 304594
19	MAY 304594H
20	MAY 304594K
21	MAY 304594L
22	MAY 304594M
23	MAY 304594N
24	MAY 305835
25	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
26	MAY Y310376
27	BUSHING FOR ACCESS STUD
28	SLEEVE, ACCESS DOOR RUBBER
29	LABEL, LINT SCREEN INSTR.
30	MAY Y313907
31	MAY Y313908
32	MAY 313908F
33	MAY 313908J
34	MAY 313908L
35	MAY 313908M
36	MAY 313908N
37	CLIP, DOOR LINER
38	MAY Y313911
39	MAY Y313927
41	MAY 314077
42	MAY 314119
44	WP400021-1 Whirlpool Screw
45	W10169313 Whirlpool Door Switch Kit
